Secure Apache with Let's Encrypt on CentOS 8

Posted

6 min read

Let’s Encrypt is a free, automated, and open certificate authority developed by the Internet Security Research Group (ISRG) that provides free SSL certificates.

Certificates issued by Let’s Encrypt are trusted by all major browsers and valid for 90 days from the issue date.

This tutorial explains how to install a free Let’s Encrypt SSL certificate on CentOS 8 running Apache as a web server. We’ll use the certbot tool to obtain and renew the certificates.

Prerequisites

Ensure that the following prerequisites are met before continuing:

  • Have a domain name pointing to your public server IP. We’ll use example.com.
  • Apache is installed and running on your server with a virtual host configured for your domain.
  • Ports 80 and 443 are open in your firewall.

Install the following packages which are required for an SSL encrypted web server:

sudo dnf install mod_ssl openssl

When the mod_ssl package is installed, it should create a self-signed key and certificate files for the localhost. If the files are not automatically created, you can create them using the openssl command:

sudo openssl req -newkey rsa:4096 -x509 -sha256 -days 3650 -nodes \
  -out /etc/pki/tls/certs/localhost.crt \
  -keyout /etc/pki/tls/private/localhost.key

Install Certbot

Certbot is a free command-line tool that simplifies the process for obtaining and renewing Let’s Encrypt SSL certificates from and auto-enabling HTTPS on your server.

The certbot package is not included in the standard CentOS 8 repositories, but it can be downloaded from the vendor’s website.

Run the following wget command as root or sudo user to download the certbot script to the /usr/local/bin directory:

sudo wget -P /usr/local/bin https://dl.eff.org/certbot-auto

Once the download is complete, make the file executable:

sudo chmod +x /usr/local/bin/certbot-auto

Generate Strong Dh (Diffie-Hellman) Group

Diffie–Hellman key exchange (DH) is a method of securely exchanging cryptographic keys over an unsecured communication channel. Generate a new set of 2048 bit DH parameters to strengthen the security:

sudo openssl dhparam -out /etc/ssl/certs/dhparam.pem 2048

You can change the size up to 4096 bits, but the generation may take more than 30 minutes depending on the system entropy.

Obtaining a Let’s Encrypt SSL certificate

To obtain an SSL certificate for the domain we’re going to use the Webroot plugin that works by creating a temporary file for validating the requested domain in the ${webroot-path}/.well-known/acme-challenge directory. The Let’s Encrypt server makes HTTP requests to the temporary file to validate that the requested domain resolves to the server where certbot runs.

To make the setup more simple we’re going to map all HTTP requests for .well-known/acme-challenge to a single directory, /var/lib/letsencrypt.

Run the following commands to create the directory and make it writable for the Apache server.

sudo mkdir -p /var/lib/letsencrypt/.well-known
sudo chgrp apache /var/lib/letsencrypt
sudo chmod g+s /var/lib/letsencrypt

To avoid duplicating code and make the configuration more maintainable, create the following two configurations snippets:

/etc/httpd/conf.d/letsencrypt.conf
Alias /.well-known/acme-challenge/ "/var/lib/letsencrypt/.well-known/acme-challenge/"
<Directory "/var/lib/letsencrypt/">
    AllowOverride None
    Options MultiViews Indexes SymLinksIfOwnerMatch IncludesNoExec
    Require method GET POST OPTIONS
</Directory>
/etc/httpd/conf.d/ssl-params.conf
SSLCipherSuite EECDH+AESGCM:EDH+AESGCM
# Requires Apache 2.4.36 & OpenSSL 1.1.1
SSLProtocol -all +TLSv1.3 +TLSv1.2
SSLOpenSSLConfCmd Curves X25519:secp521r1:secp384r1:prime256v1
# Older versions
# SSLProtocol All -SSLv2 -SSLv3 -TLSv1 -TLSv1.1
SSLHonorCipherOrder On
Header always set Strict-Transport-Security "max-age=63072000; includeSubDomains; preload"
Header always set X-Frame-Options DENY
Header always set X-Content-Type-Options nosniff
# Requires Apache >= 2.4
SSLCompression off
SSLUseStapling on
SSLStaplingCache "shmcb:logs/stapling-cache(150000)"
# Requires Apache >= 2.4.11
SSLSessionTickets Off

SSLOpenSSLConfCmd DHParameters "/etc/ssl/certs/dhparam.pem"

The snippet above is using the chippers recommended by Cipherli.st. It enables OCSP Stapling, HTTP Strict Transport Security (HSTS), Dh key, and enforces few security‑focused HTTP headers.

Reload the Apache configuration for changes to take effect:

sudo systemctl reload httpd

Now, you can run certbot script with the webroot plugin and fetch the SSL certificate files:

sudo /usr/local/bin/certbot-auto certonly --agree-tos --email admin@example.com --webroot -w /var/lib/letsencrypt/ -d example.com -d www.example.com

On success, certbot will print the following message:

IMPORTANT NOTES:
 - Congratulations! Your certificate and chain have been saved at:
   /etc/letsencrypt/live/example.com/fullchain.pem
   Your key file has been saved at:
   /etc/letsencrypt/live/example.com/privkey.pem
   Your cert will expire on 2020-01-26. To obtain a new or tweaked
   version of this certificate in the future, simply run certbot-auto
   again. To non-interactively renew *all* of your certificates, run
   "certbot-auto renew"
 - Your account credentials have been saved in your Certbot
   configuration directory at /etc/letsencrypt. You should make a
   secure backup of this folder now. This configuration directory will
   also contain certificates and private keys obtained by Certbot so
   making regular backups of this folder is ideal.
 - If you like Certbot, please consider supporting our work by:

   Donating to ISRG / Let's Encrypt:   https://letsencrypt.org/donate
   Donating to EFF:                    https://eff.org/donate-le

Now that everything is set up, edit your domain virtual host configuration as follows:

/etc/httpd/conf.d/example.com.conf
<VirtualHost *:80>
  ServerName example.com
  ServerAlias www.example.com

  Redirect permanent / https://example.com/
</VirtualHost>

<VirtualHost *:443>
  ServerName example.com
  ServerAlias www.example.com

  Protocols h2 http:/1.1

  <If "%{HTTP_HOST} == 'www.example.com'">
    Redirect permanent / https://example.com/
  </If>

  DocumentRoot /var/www/example.com/public_html
  ErrorLog /var/log/httpd/example.com-error.log
  CustomLog /var/log/httpd/example.com-access.log combined

  SSLEngine On
  SSLCertificateFile /etc/letsencrypt/live/example.com/fullchain.pem
  SSLCertificateKeyFile /etc/letsencrypt/live/example.com/privkey.pem

  # Other Apache Configuration

</VirtualHost>

The configuration above is forcing HTTPS and redirecting from www to non-www version. It also enables HTTP/2, which will make your sites faster and more robust. Fell free to adjusts the configuration according to your needs.

Restart the Apache service:

sudo systemctl restart httpd

You can now open your website using https://, and you’ll notice a green lock icon.

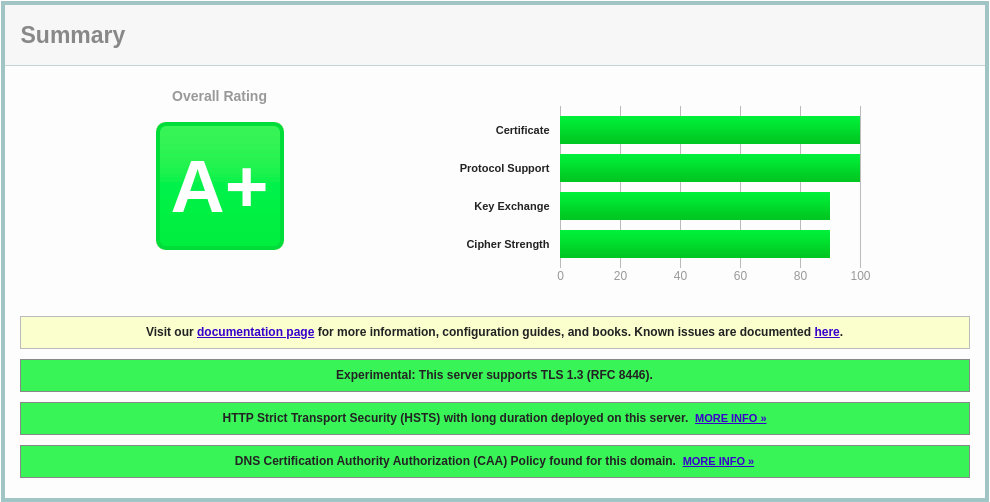

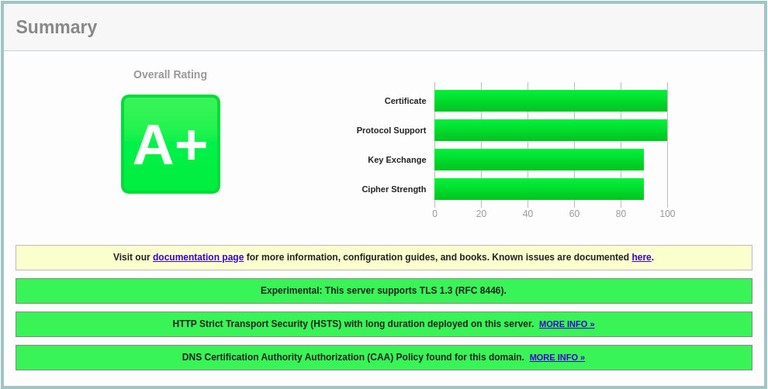

If you test your domain using the SSL Labs Server Test, you’ll get an A+ grade, as shown below:

Auto-renewing Let’s Encrypt SSL certificate

Let’s Encrypt’s certificates are valid for 90 days. To automatically renew the certificates before they expire, we’ll create a cronjob that will run twice a day and automatically renew any certificate 30 days before its expiration.

Run the following command to create a new cronjob which will renew the certificate and restart Apache:

echo "0 0,12 * * * root python3 -c 'import random; import time; time.sleep(random.random() * 3600)' && /usr/local/bin/certbot-auto -q renew --renew-hook \"systemctl reload httpd\"" | sudo tee -a /etc/crontab > /dev/null

To test the renewal process, use the certbot command followed by the --dry-run switch:

sudo /usr/local/bin/certbot-auto renew --dry-run

If there are no errors, it means that the renewal process was successful.

Conclusion

In this tutorial, we talked about how to use the Let’s Encrypt client certbot on CentOS to obtain SSL certificates for your domains. You have also shown you how to configured Apache to use the certificates and set up a cronjob for automatic certificate renewal.

To learn more about the Certbot script, visit the Certbot documentation.
