How to Install and Configure GitLab on Ubuntu 18.04

Updated on

7 min read

Install and Configure GitLab on Ubuntu 18.04

GitLab is a web-based open-source Git repository manager written in Ruby including wiki, issue management, code review, monitoring, and continuous integration and deployment. It enables developers to create, review, and deploy their projects.

There are three different editions of GitLab available, Community Edition (CE), Enterprise Edition (EE), and a GitLab-hosted version.

GitLab is the number one choice if you want to move away from GitHub . It can import projects and issues from different sources including GitHub, which makes the migration process hassle-free. The GitLab interface is well-designed, clean, intuitive and close to GitHub’s in terms of user experience and functionality.

There are several ways to install GitLab depending on the required use case. This tutorial covers the steps necessary for installing and configuring GitLab (CE) on an Ubuntu 18.04 system using the Omnibus packages.

Prerequisites

This tutorial assumes that you have a fresh Ubuntu 18.04 installation. According to the GitLab requirements page , it is recommended to use a server with:

  • at least 4GB of RAM memory .
  • 2 CPU cores.
  • at least 2GB of swap space .
  • (optional) Domain or subdomain pointing to the server IP address.

For an additional layer of security it is recommended to set up a basic firewall. You can follow the steps in our How To Set Up a Firewall with UFW on Ubuntu 18.04 guide.

Before starting with the tutorial, make sure you are logged in as a user with sudo privileges .

Installing Required Dependencies

Refresh the local package index and install the dependencies with the following commands:

sudo apt updatesudo apt install curl openssh-server ca-certificates

In order for GitLab to be able to send notification emails, you can either install and use Postfix or use some transactional mail service such as SendGrid, MailChimp, MailGun or SES in which case you can skip the following step and configure [GitLab SMTP settings] (https://docs.gitlab.com/omnibus/settings/smtp.html ) after the installation is completed.

Run the following commands to install Postfix on your Ubuntu server:

debconf-set-selections <<< "postfix postfix/mailname string $(hostname -f)"debconf-set-selections <<< "postfix postfix/main_mailer_type string 'Internet Site'"sudo apt install postfix

For more detailed information about how to setup your own mail server check this series .

Installing GitLab

GitLab installation is a pretty straight forward process. We will install the GitLab CE package using the apt package manager.

Start by adding the GitLab repository to your system sources list using the following curl command :

curl https://packages.gitlab.com/install/repositories/gitlab/gitlab-ce/script.deb.sh | sudo bash

Once the repository is enabled install the GitLab package by running the following command.

sudo apt install gitlab-ce

The installation process may take a while and after a successful installation, you will see the following output:

Thank you for installing GitLab!

Adjusting the Firewall Rules

The guide about setting up a basic firewall is linked in the prerequisites section. To be able to access the GitLab interface we need to open ports 80 and 443:

sudo ufw allow OpenSSHsudo ufw allow httpsudo ufw allow https

To be sure that the required ports are open you can check the status of the firewall with:

sudo ufw status
Status: active

To                         Action      From
--                         ------      ----
80/tcp                     ALLOW       Anywhere
443/tcp                    ALLOW       Anywhere
OpenSSH                    ALLOW       Anywhere
80/tcp (v6)                ALLOW       Anywhere (v6)
443/tcp (v6)               ALLOW       Anywhere (v6)
OpenSSH (v6)               ALLOW       Anywhere (v6)

Set the GitLab URL

Before accessing the GitLab web interface we need to set the URL on which GitLab will be reachable. Open Gitlab’s configuration file and make the following changes:

sudo nano /etc/gitlab/gitlab.rb

Near the top of the configuration file, you will see a line starting with external_url. Change the value to match your domain/subdomain or IP address. If you have domain use https and if you want to access the GitLab interface through your server IP address use http.

/etc/gitlab/gitlab.rb
external_url 'https://gitlab.example.com'

Next search for “Let’s Encrypt integration”, uncomment the line starting with letsencrypt['enable'] and set it to true. Optionally if you want to receive emails from Let’s Encrypt concerning your domain uncomment the line starting with letsencrypt['contact_emails'] and add your email address.

If you set the external_url to an IP address then don’t enable Let’s Encrypt integration.

/etc/gitlab/gitlab.rb
letsencrypt['enable'] = true
letsencrypt['contact_emails'] = ['admin@example.com'] # This should be an array of email addresses to add as contacts

Finally, save and close the file and run the following command to reconfigure Gitlab:

sudo gitlab-ctl reconfigure

The command will reconfigure your GitLab settings and generate a free Let’s encrypt SSL certificate.

Configure GitLab through the Web Interface

Now that you have configured the GitLab URL you can start with the initial configuration through the GitLab web interface.

Launch your web browser and navigate to:

https://your_gitlab_domain_or_server_IP.com

1. Setting administrative account password

The first time you access the web interface you’ll be prompted to set the password for the administrative account.

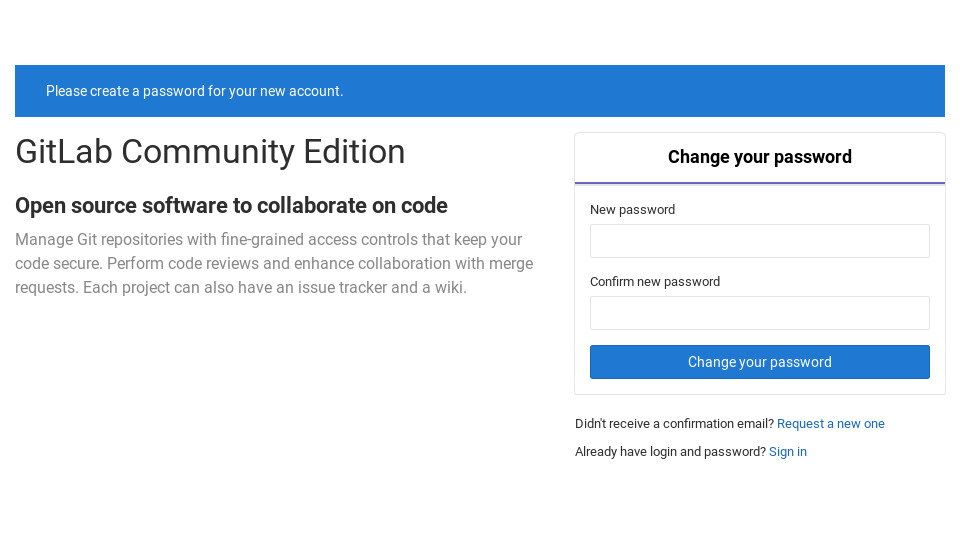

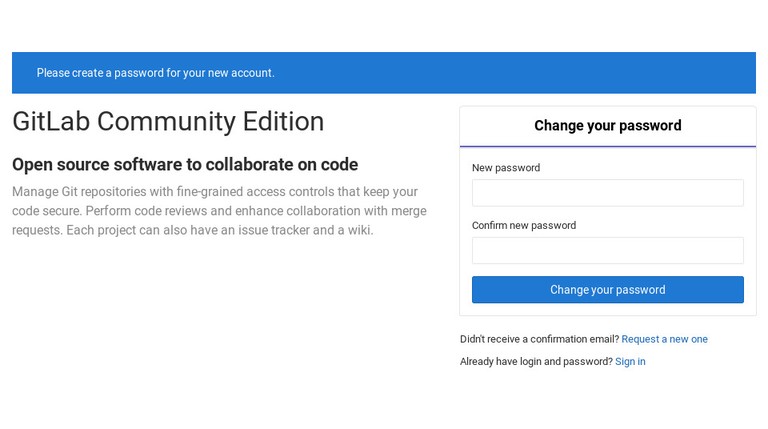

GitLab change Password

Enter a secure password and click on the Change your password button when you are finished.

You will be redirected to the login page:

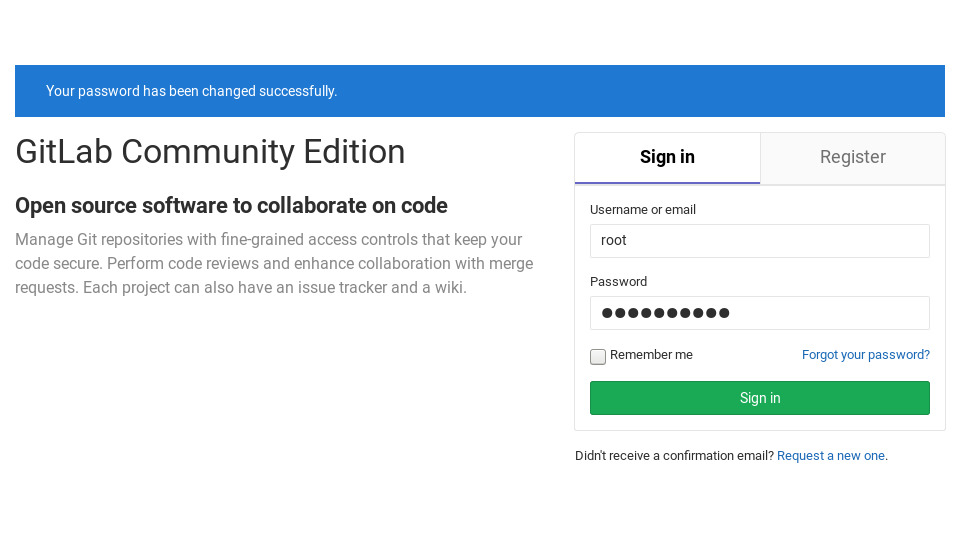

GitLab Login Page

The default administrative account username is root. Later in this tutorial, we will show you how to change the username.

  • Username: root
  • Password: [the password you have set]

Once you enter the login credentials and click the Sign in button you will taken to the GitLab Welcome page.

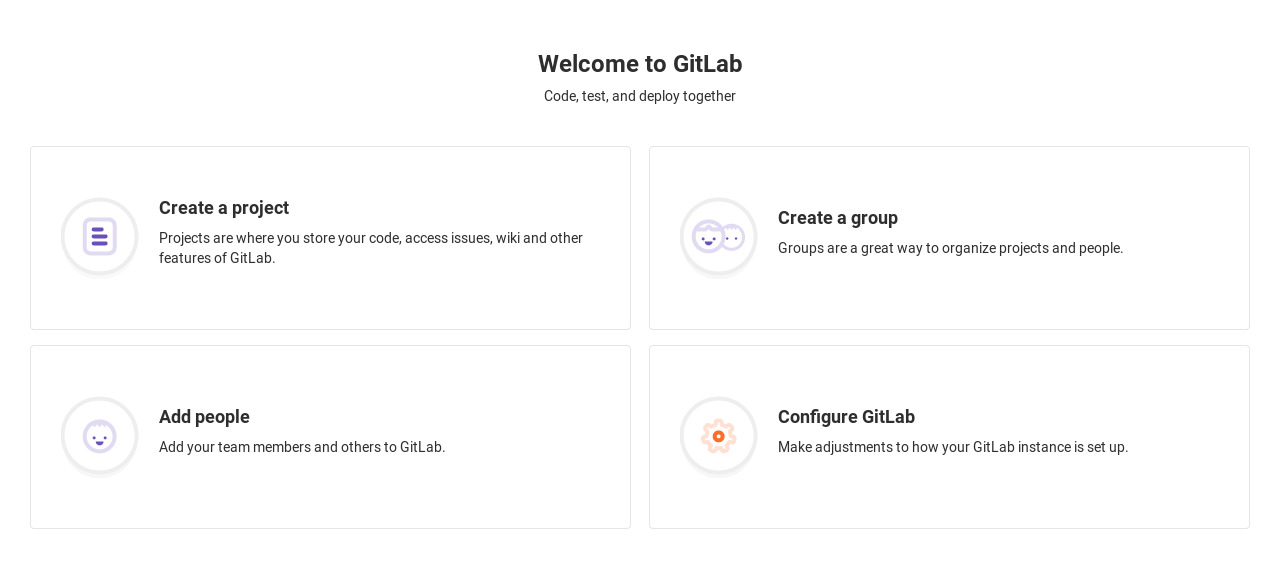

GitLab Welcome Page

2. Editing User profile

The first thing you will want to do is to edit your user profile. Click on the user avatar (upper-right corner) and from the drop-down menu, select Settings:

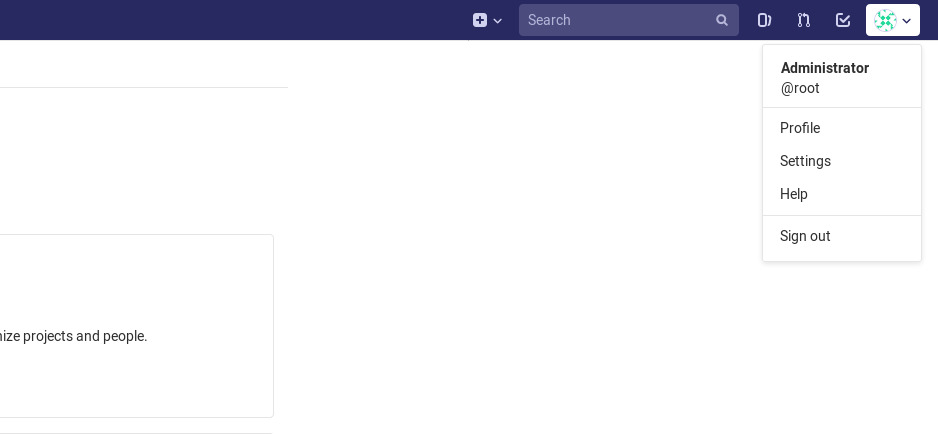

GitLab DropDown Navigation

Here you can change your Name, Email, and other profile information and settings. Make the changes according to your liking.

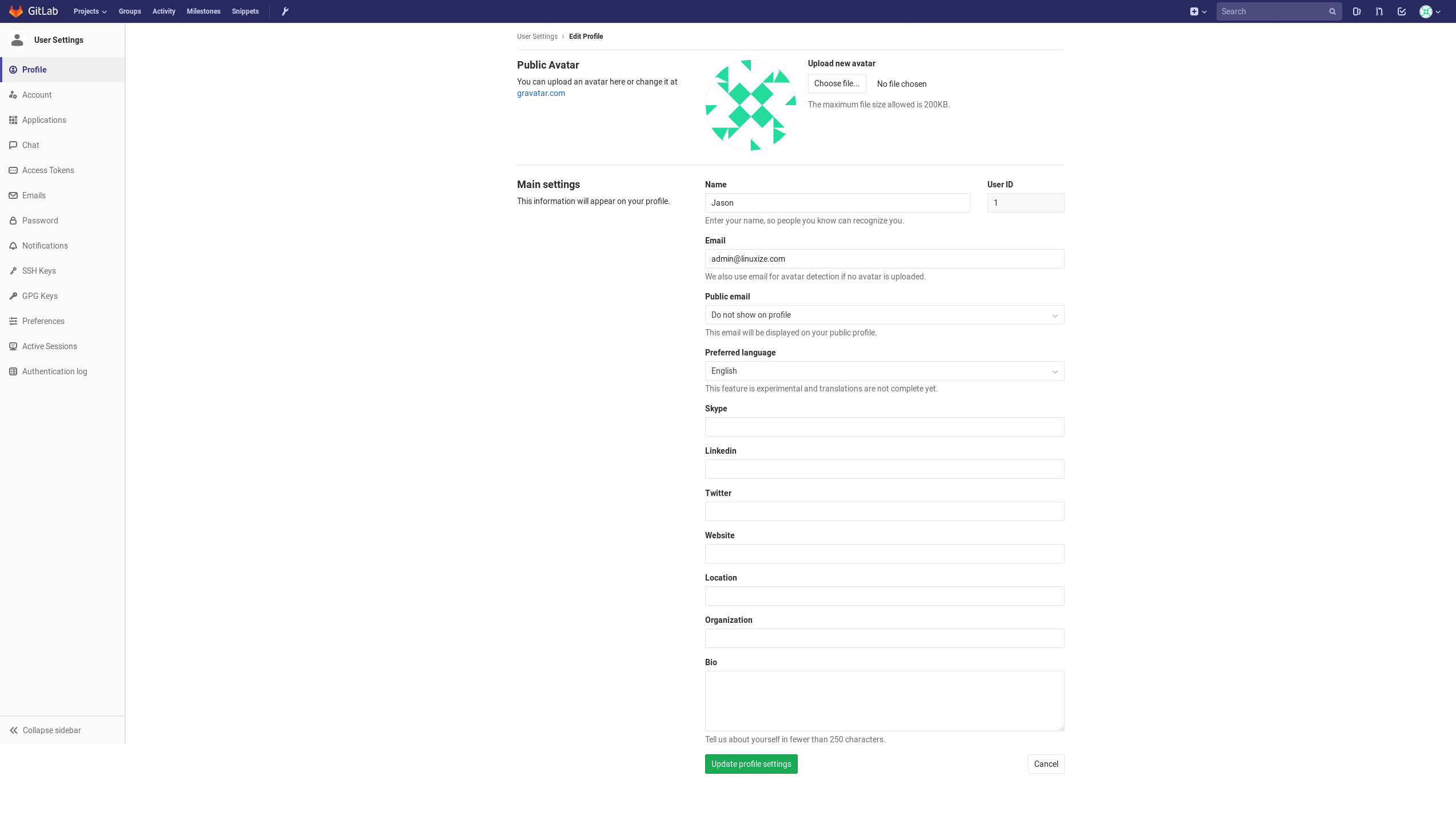

GitLab Profile page

Once you are done click on the Update Profile settings button and shortly you will receive a confirmation email to the address you provided. To confirm your account follow the instructions provided in the email.

3. Changing Username

To access the Profile page, click on the Account link from the left-hand vertical navigation menu.

As you already know the default username of the first administrative account is root. To change it just type your new username and click on the Update username button.

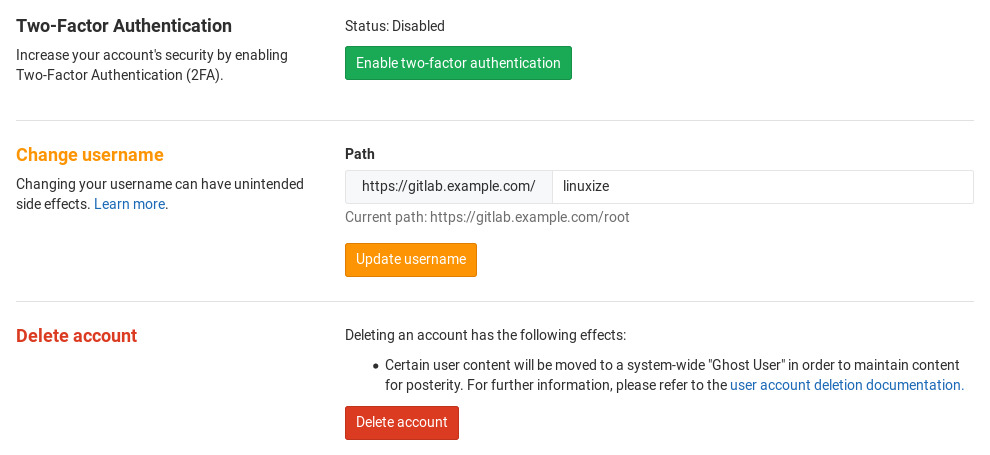

GitLab change Username

On this screen, you can also enable two-factor authentication.

The next time you will log in to your GitLab dashboard you will need to enter the new username.

4. Adding SSH Key

To be able to push your local git changes to the GitLab server you to add your SSH public key to your GitLab account.

If you already have an SSH key pair created on your local system you can display the public key by typing:

cat ~/.ssh/id_rsa.pub

The output should look something like the following:

ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAACAQDd/mnMzHwjUzK8g3ldfsfRpJuC16mhWamaXRk8ySQrD/dzpbRLfDnZsLxCzRoq+ZzFHGwcQlJergtergdHGRrO8FE5jl3IWRRp+mP12qYw== admin@linuxize.com

In case the command above prints No such file or directory it means that you do not have an SSH key pair generated on your machine.

To generate a new SSH key pair use the following command:

ssh-keygen -t rsa -b 4096 -C "your_email@domain.com"

Copy the output from the cat command and go back to the GitLab’s web interface. Click SSH Keys from the left-hand vertical navigation menu to access the SSH Keys configuration page.

In the Key textarea paste the public key you previously copied from your local machine, set a descriptive title and click on the Add key button:

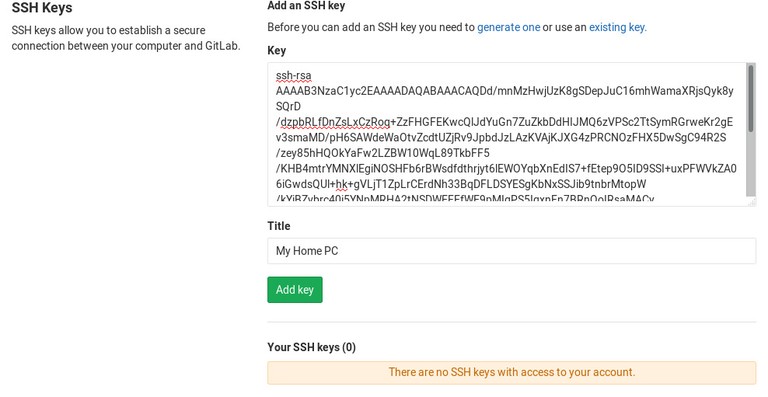

GitLab add SSH Key

Now you should be able to push and pull your project changes from your local computer without having to provide your GitLab account credentials.

Conclusion

This tutorial walked you through the installation and configuration of GitLab on Ubuntu 18.04. You also learned how to edit your profile settings, how to change the username and add an SSH key. You can now create your first project and start using your GitLab.

If you have questions, feel free to leave a comment below.
