How to Install and Configure Zabbix on Debian 9 Linux

Published on

9 min read

Install and Configure Zabbix on Debian

Zabbix is a mature open-source software for monitoring networks and applications. Zabbix can collects metrics from various networks devices, systems, and applications. In case of any failures, Zabbix will send notification alerts via various methods.

Zabbix supports both agent-based and agent-less monitoring. The Zabbix agent has a small footprint and can run on various platforms, including Linux, UNIX, macOS, and Windows.

This tutorial explains how to install and configure the latest version of Zabbix 4.0 on a Debian 9 Linux server using MySQL as a database back-end. We will also show you how to install the Zabbix agent on a remote host and add the host to the Zabbix server.

Prerequisites

The user you are logged in as must have sudo privileges to be able to install packages.

Creating MySQL Database

Zabbix supports both MySQL /MariaDB and PostgreSQL . In this guide, we’ll use MariaDB as a database back-end.

If you don’t have MariaDB installed on your Debian server, install it by following these instructions .

Login to the MySQL console:

sudo mysql

Run the following SQL statement to create a new database :

CREATE DATABASE zabbix CHARACTER SET utf8 collate utf8_bin;

Next, create a MySQL user account and grant access to the database :

GRANT ALL ON zabbix.* TO 'zabbix'@'localhost' IDENTIFIED BY 'change-with-strong-password';
Make sure you change change-with-strong-password with a strong password.

Once done, exit the MySQL console by typing:

EXIT;

Installing Zabbix on Debian

At the time of writing this article, the latest stable version of Zabbix is version 4.0. The Zabbix packages available in Debian repositories are often outdated so we’ll use the official Zabbix repository .

1. Installing Zabbix

Download the latest Zabbix repository .deb package with following wget command :

wget https://repo.zabbix.com/zabbix/4.0/debian/pool/main/z/zabbix-release/zabbix-release_4.0-2+stretch_all.deb

Once the file is downloaded, install it with:

sudo apt install ./zabbix-release_4.0-2+stretch_all.deb

Update the packages list and install the Zabbix server, the web frontend with MySQL database support and the Zabbix agent:

sudo apt updatesudo apt install zabbix-server-mysql zabbix-frontend-php zabbix-agent

The command above will also install Apache , PHP , and all required PHP modules.

2. Configuring PHP for Zabbix frontend

An Apache configuration file with all the required Apache and PHP settings is created during the installation.

Open the configuration file, uncomment the timezone line and change it to your time zone. You can find the complete list of time zones supported by PHP here .

/etc/apache2/conf-enabled/zabbix.conf
...
    <IfModule mod_php7.c>
        php_value max_execution_time 300
        php_value memory_limit 128M
        php_value post_max_size 16M
        php_value upload_max_filesize 2M
        php_value max_input_time 300
        php_value max_input_vars 10000
        php_value always_populate_raw_post_data -1
        php_value date.timezone America/Denver
    </IfModule>
...

Once done, save the file and restart the Apache service for changes to be activated.

sudo systemctl restart apache2

3. Configuring the MySQL Database For Zabbix Server

Import the MySQL dump file which includes an initial schema and data for the Zabbix server with MySQL.

gunzip < /usr/share/doc/zabbix-server-mysql/create.sql.gz | mysql -uzabbix -p zabbix

When prompted enter the user password you created previously. On success, no output is given.

Next, open the Zabbix configuration and set the database password:

sudo nano /etc/zabbix/zabbix_server.conf

Search for the following section, uncomment the DBPassword directive and add the database password.

/etc/zabbix/zabbix_server.conf
...
### Option: DBPassword
#       Database password.
#       Comment this line if no password is used.
#
# Mandatory: no
# Default:
DBPassword=change-with-strong-password
...

Save and close the file.

Restart and enable the Zabbix server and agent services:

sudo systemctl restart zabbix-server zabbix-agentsudo systemctl enable zabbix-server zabbix-agent

Verify that the Zabbix server is running:

sudo systemctl status zabbix-server
● zabbix-server.service - Zabbix Server
   Loaded: loaded (/lib/systemd/system/zabbix-server.service; enabled; vendor preset: enabled)
   Active: active (running) since Mon 2019-01-28 15:37:21 CST; 35s ago
 Main PID: 27632 (zabbix_server)
   CGroup: /system.slice/zabbix-server.service
   ...

Installing and Configuring Zabbix Frontend

Zabbix web interface is written in PHP and allows you to configure the server, view gathered data and add hosts you want to monitor.

TO start the installation, open your favorite browser and type your server’s domain name or public IP address followed by /zabbix:

http(s)://your_domain_or_ip_address/zabbix

On the first screen, you will be presented with a welcome message. Click Next step to continue.

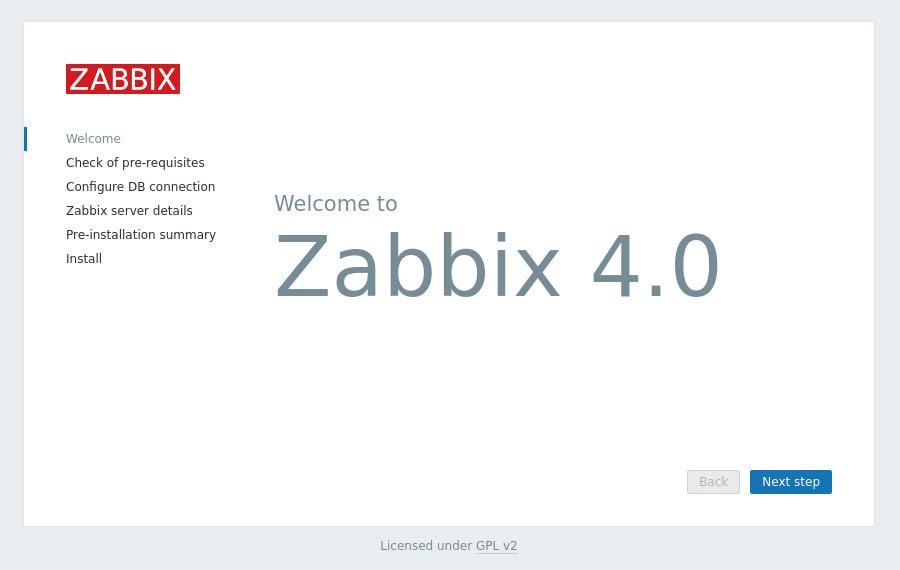

Zabbix Welcome Screen

Next, you will see an information page with a list of the necessary PHP packages required to run the Zabbix Frontend. Scroll down to verify that everything is installed and set up correctly. Once verified, click Next step to proceed.

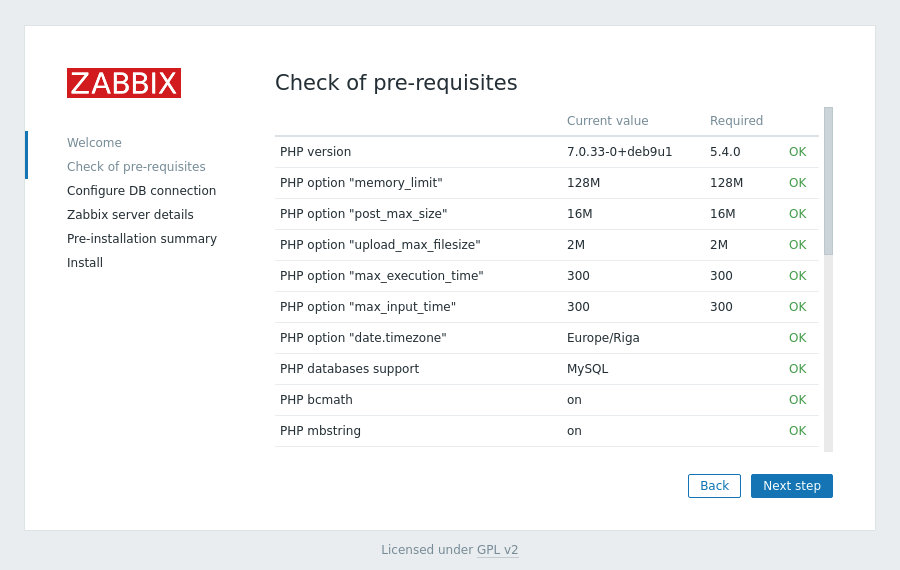

Zabbix check pre-requisites

On the next screen, the setup wizard will ask you to enter the database connection details. Enter the MySQL user and database details you previously created.

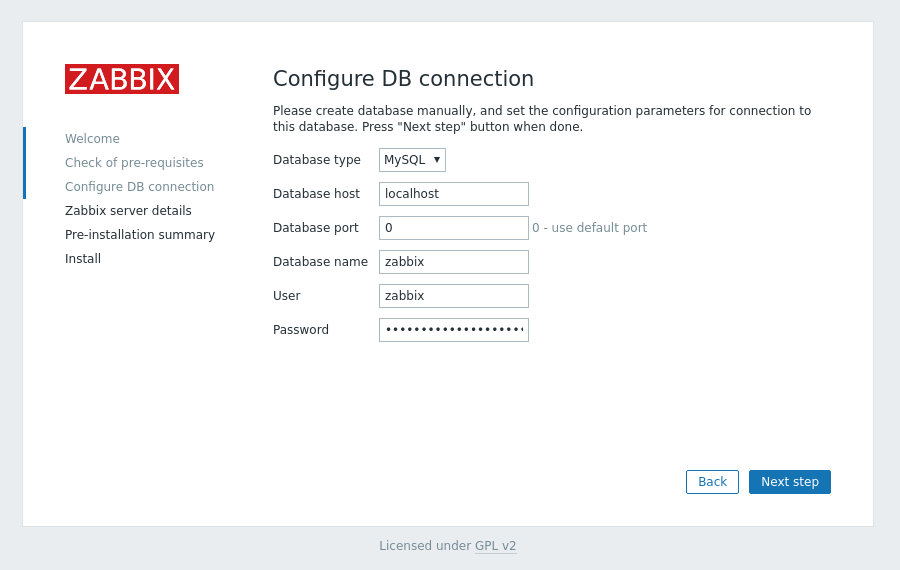

Zabbix configure db connection

Entering a name for the server is optional. Enter it if you have more than one Zabbix monitoring servers. If provided, it will be displayed in the menu bar and page titles.

Click Next step to continue.

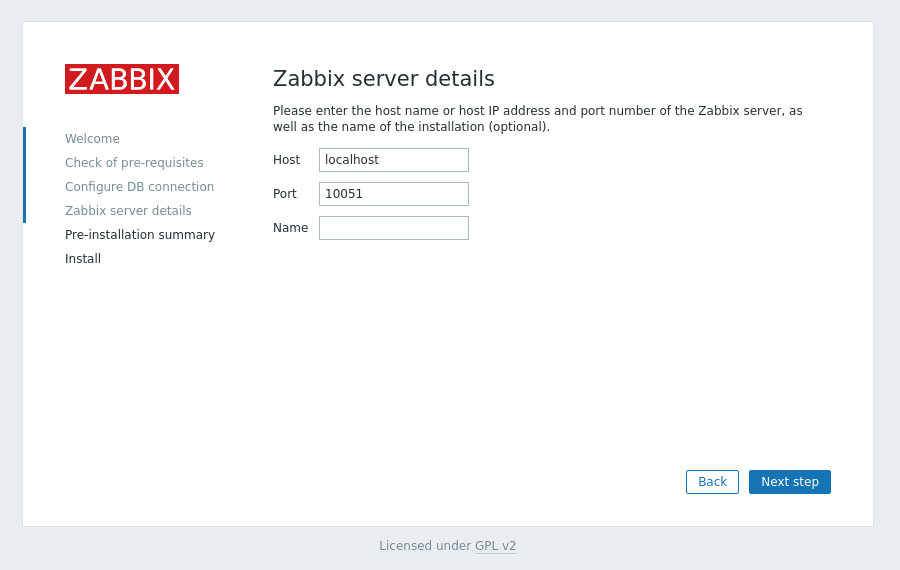

Zabbix server details

On the next screen, you will see the pre-installation summary.

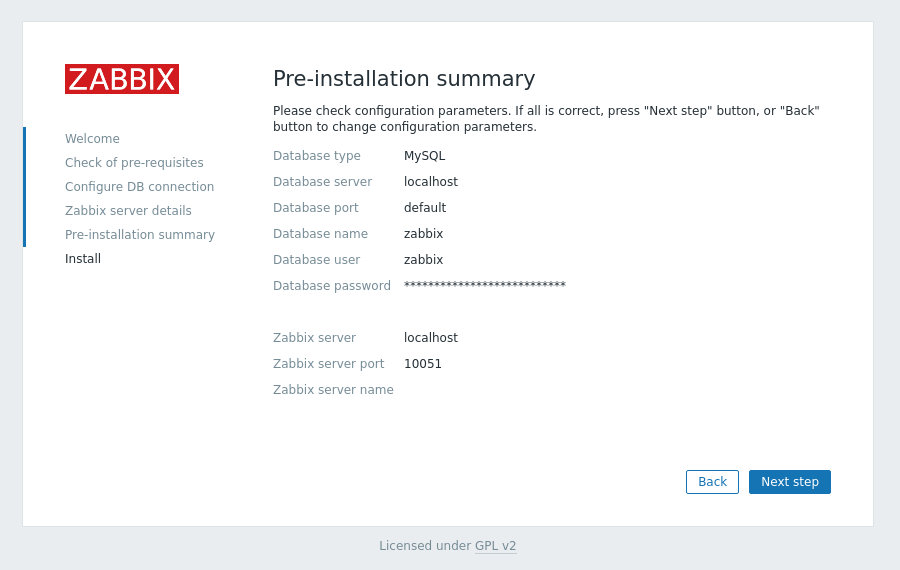

Zabbix pre-installation summary

Click Next step and once the installation is completed you will be taken to a page showing that Zabbix web interface has been installed. To access your Zabbix login page click on the Finish button.

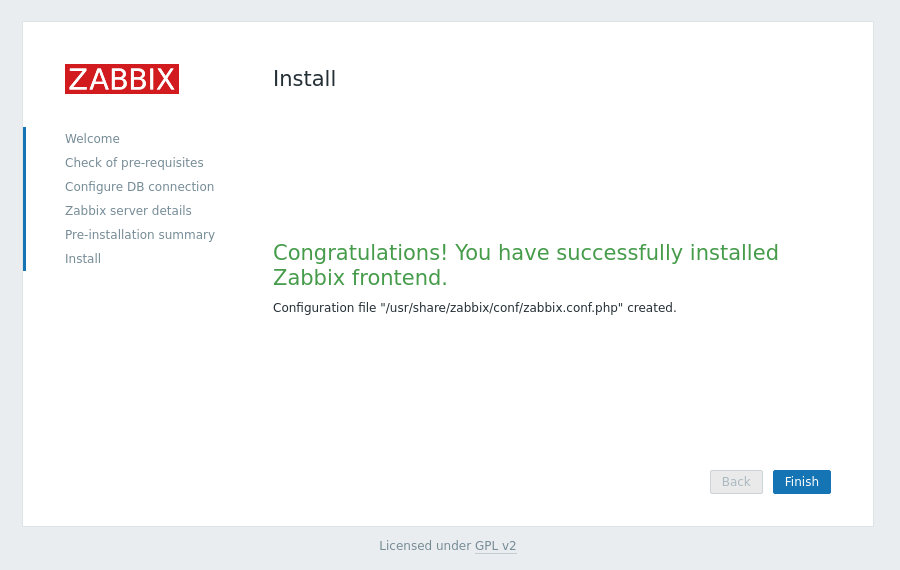

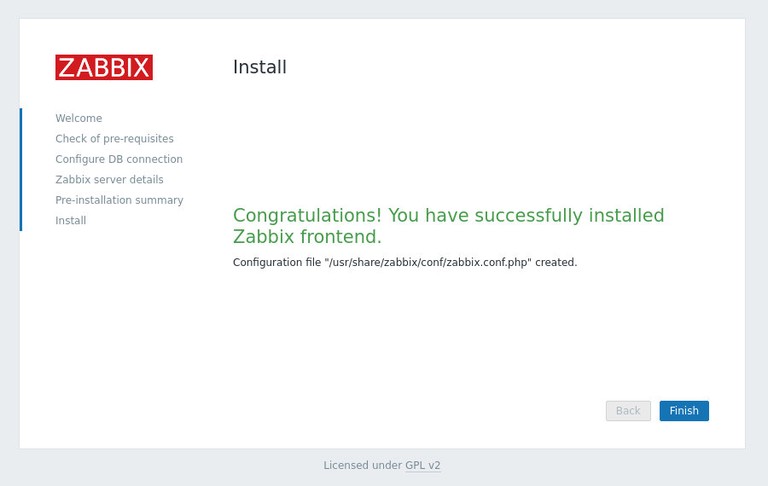

Zabbix install

The default user is “Admin” and the password is “zabbix”. Enter the username and password and click on the Log in button.

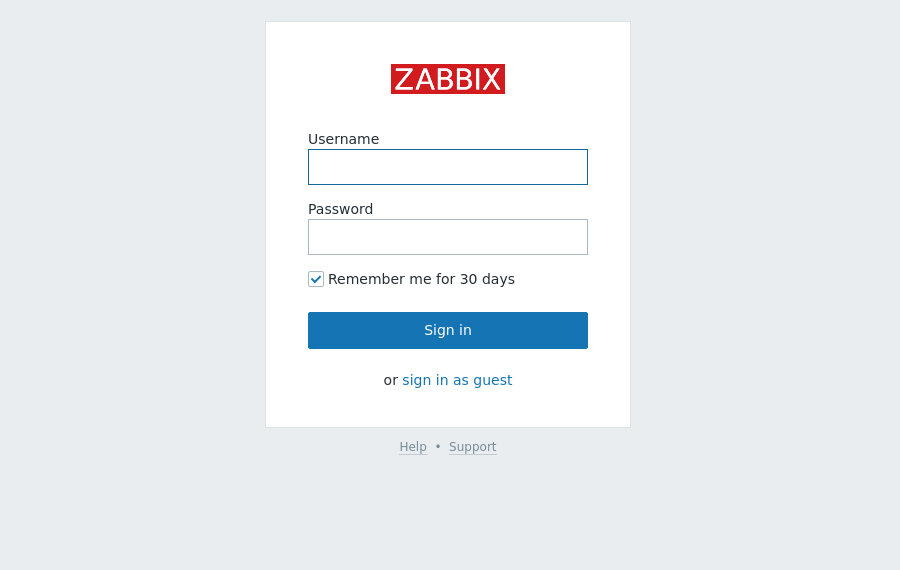

Zabbix login screen

Once you log in, you will be redirected to the Zabbix administration dashboard.

From here, you can start customizing your Zabbix installation and adding new hosts. First, you need to change the current password. To do that navigate to the user profile page by clicking on the profile icon on the top navigation.

Adding a New Host to Zabbix Server

The procedure for adding a new host for monitoring to the Zabbix server includes two steps.

First, you need to install the Zabbix agent on the remote host and then add the host to the Zabbix server through the web interface.

Installing the Zabbix agent

This tutorial assumes that the host machine also uses Debian 9.

Same as when installing the Zabbix server, run the following commands to enable the Zabbix repository:

wget https://repo.zabbix.com/zabbix/4.0/debian/pool/main/z/zabbix-release/zabbix-release_4.0-2+stretch_all.debsudo apt install ./zabbix-release_4.0-2+stretch_all.deb

Update the packages list and install the Zabbix agent package:

sudo apt updatesudo apt install zabbix-agent

Zabbix supports two methods for server-client communication encryption, Preshared Key (PSK) and certificate-based encryption. In this guide, we will use the pre-shared keys (PSK) method to secure the connection between the server and agent.

Run to following command to generate a pre-shared key and save it to a file:

openssl rand -hex 32 | sudo tee /etc/zabbix/zabbix_agentd.psk

The PSK key will look something like this:

fc3077ed3db8589ec920ac98a7ddea96aca205eb63bbd29c66ae91743a7ecbb6

Open the Zabbix agent configuration file:

sudo nano /etc/zabbix/zabbix_agentd.conf

Search for the Server IP Address and change it from the default value to your Zabbix server IP:

/etc/zabbix/zabbix_agentd.conf
...
### Option: Server
#       List of comma delimited IP addresses, optionally in CIDR notation, or DNS names of Zabbix servers and Zabbix proxies.
#       Incoming connections will be accepted only from the hosts listed here.
#       If IPv6 support is enabled then '127.0.0.1', '::127.0.0.1', '::ffff:127.0.0.1' are treated equally
#       and '::/0' will allow any IPv4 or IPv6 address.
#       '0.0.0.0/0' can be used to allow any IPv4 address.
#       Example: Server=127.0.0.1,192.168.1.0/24,::1,2001:db8::/32,zabbix.example.com
#
# Mandatory: yes, if StartAgents is not explicitly set to 0
# Default:
# Server=

Server=127.0.0.1
...

Next, find the TSLConnect option, uncomment it and set it to psk:

/etc/zabbix/zabbix_agentd.conf
...
### Option: TLSConnect
#       How the agent should connect to server or proxy. Used for active checks.
#       Only one value can be specified:
#               unencrypted - connect without encryption
#               psk         - connect using TLS and a pre-shared key
#               cert        - connect using TLS and a certificate
#
# Mandatory: yes, if TLS certificate or PSK parameters are defined (even for 'unencrypted' connection)
# Default:
TLSConnect=psk
...

Locate the TLSAccept option, uncomment it and set it to psk:

/etc/zabbix/zabbix_agentd.conf
...
### Option: TLSAccept
#       What incoming connections to accept.
#       Multiple values can be specified, separated by comma:
#               unencrypted - accept connections without encryption
#               psk         - accept connections secured with TLS and a pre-shared key
#               cert        - accept connections secured with TLS and a certificate
#
# Mandatory: yes, if TLS certificate or PSK parameters are defined (even for 'unencrypted' connection)
# Default:
TLSAccept=psk
...

Next, find the TLSPSKIdentity option, uncomment it and set it to PSK 001 The value needs to be a unique string:

/etc/zabbix/zabbix_agentd.conf
...
### Option: TLSPSKIdentity
#       Unique, case sensitive string used to identify the pre-shared key.
#
# Mandatory: no
# Default:
TLSPSKIdentity=PSK 001
...

Finally, locate the TLSPSKFile option, uncomment it and set it to point to the previously created pre-shared key:

/etc/zabbix/zabbix_agentd.conf
...
### Option: TLSPSKFile
#       Full pathname of a file containing the pre-shared key.
#
# Mandatory: no
# Default:
TLSPSKFile=/etc/zabbix/zabbix_agentd.psk
...

Once done, save and close the file.

Start the Zabbix agent service and set it to start at boot time with:

sudo systemctl start zabbix-agentsudo systemctl enable zabbix-agent

Next, add a firewall rule that enables traffic from your Zabbix server on TCP port 10050.

Assuming you are using UFW to manage your firewall and you want to allow access from the 192.168.121.70 IP address you would run the following command:

sudo ufw allow proto tcp from 192.168.121.70 to any port 10050

Set up a New Host

Now that the agent on the remote host you want to monitor is installed and configured the next step is to register the host on the Zabbix server.

Log in to the Zabbix Server web interface as the admin user:

http(s)://your_domain_or_ip_address/zabbix

Once inside, in the top navigation bar click on the Configuration, and then Hosts

Next, click on the blue Create host button in the top right corner of the screen and the host configuration page will open:

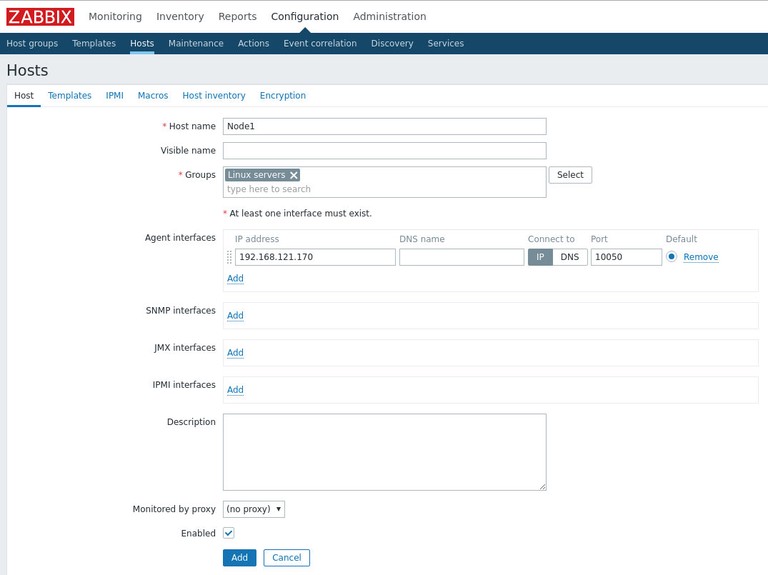

Zabbix hosts host

Enter the Hostname and the IP Address of the remote host machine you want to monitor. Add the host to one or multiple groups by selecting the group from the list, or enter a non-existing group name to create a new one. The Linux Servers group is a good choice.

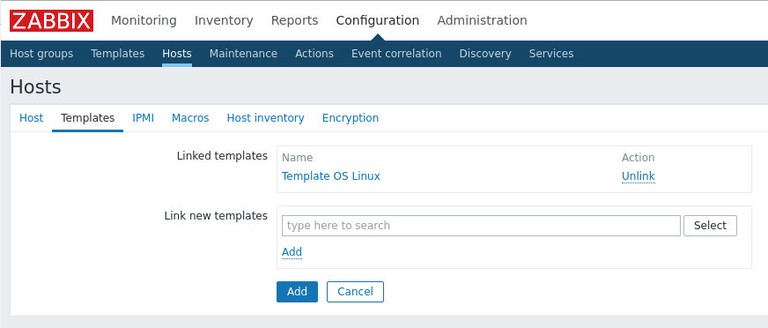

Zabbix hosts templates

Once done, click the Templates tab. Select the Template OS Linux and click on the Add link to add the template to the host.

Next, click on the Encryption tab. Select PSK for both Connections to host and Connections from host.

Set the PSK identity value to PSK 001, the value of the TLSPSKIdentity option of the Zabbix agent you configured in the previous step.

In the PSK value filed add the key you generated for the Zabbix agent, the one stored in the /etc/zabbix/zabbix_agentd.psk file.

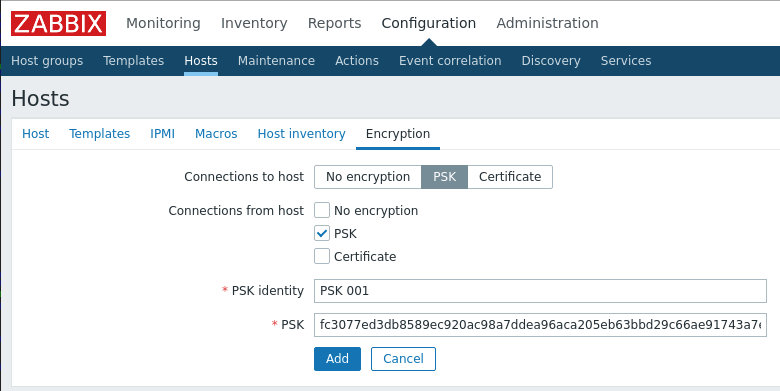

Zabbix hosts encryption

Finally, to add the host click on the blue Add button.

Conclusion

You have successfully installed the latest Zabbix on your Debian system and learned how to add new hosts that you want to monitor.

You should now check the Zabbix Documentation and learn more about how to configure and use Zabbix.

If you hit a problem or have feedback, leave a comment below.
