How to Set Up WireGuard VPN on Ubuntu 18.04

Posted

9 min read

WireGuard is a modern VPN (Virtual Private Network) technology with state-of-the-art cryptography. Compared to other similar solutions, such as IPsec and OpenVPN , WireGuard is faster, easier to configure, and more performant. It is a cross-platform and can run almost anywhere, including Linux, Windows, Android, and macOS. Wireguard is a peer-to-peer VPN; it does not use the client-server model. Depending on its configuration, a peer can act as a traditional server or client.

WireGuard works by creating a network interface on each peer device that acts as a tunnel. Peers authenticate each other by exchanging and validating public keys, mimicking the SSH model. Public keys are mapped with a list of IP addresses that are allowed in the tunnel. The VPN traffic is encapsulated in UDP.

In this tutorial, we will set up WireGuard on an Ubuntu 18.04 machine that will act as a VPN server. We’ll also show you how to configure WireGuard as a client. The client’s traffic will be routed through the Ubuntu 18.04 server.

This setup can be used as a protection against Man in the Middle attacks, surfing the web anonymously, bypassing Geo-restricted content, or allowing your coworkers to connect securely to the company network when working remotely.

Prerequisites

You’ll need an Ubuntu 18.04 server that you can access as root or account with sudo privileges .

Setting Up the WireGuard Server

In this section, we’ll install WireGuard on the Ubuntu machine and set it up to act as a server. We’ll also configure the system to route the clients’ traffic through it.

Installing WireGuard on Ubuntu 18.04

WireGuard maintains its own APT repository from which we’ll install the package, and update it when a new version is available.

Update the packages list and install the tools necessary for managing your system repositories. Chances are that you already have the package on your machine:

sudo apt updatesudo apt install software-properties-common

Add the WireGuard repository:

sudo add-apt-repository ppa:wireguard/wireguard

When prompted, press Enter to continue. add-apt-repository will also automatically update the package list.

Install the WireGuard package:

sudo apt install wireguard

WireGuard runs as a kernel module, which is compiled as a DKMS module. On success, you’ll see the following output:

wireguard:
Running module version sanity check.
 - Original module
   - No original module exists within this kernel
 - Installation
   - Installing to /lib/modules/4.15.0-88-generic/updates/dkms/

depmod...

DKMS: install completed.

When you update the kernel the WireGuard module will be compiled against the new kernel.

Configuring WireGuard

WireGuard ships with two command-line tools named wg and wg-quick that allow you to configure and manage the WireGuard interfaces.

Run the following command to generate the public and private keys:

wg genkey | sudo tee /etc/wireguard/privatekey | wg pubkey | sudo tee /etc/wireguard/publickey

The files will be generated in the /etc/wireguard directory. You can view the files with cat or less . The private key should never be shared with anyone.

Now that the keys are generated, we’ll need to configure the tunnel device that will route the VPN traffic.

The device can be set up either from the command line using the ip and wg or by creating the configuration file with a text editor.

Create a new file named wg0.conf and add the following contents:

sudo nano /etc/wireguard/wg0.conf
/etc/wireguard/wg0.conf
[Interface]
Address = 10.0.0.1/24
SaveConfig = true
ListenPort = 51820
PrivateKey = SERVER_PRIVATE_KEY
PostUp = iptables -A FORWARD -i %i -j ACCEPT; iptables -t nat -A POSTROUTING -o ens3 -j MASQUERADE
PostDown = iptables -D FORWARD -i %i -j ACCEPT; iptables -t nat -D POSTROUTING -o ens3 -j MASQUERADE

The interface can be named anything, however it is recommended to use something like include wg0 or wgvpn0. The settings in the interface section have the following meaning:

  • Address - a comma-separated list of v4 or v6 IP addresses for the wg0 interface. Use IPs from a range that is reserved for the private networks (10.0.0.0/8, 172.16.0.0/12 or 192.168.0.0/16).

  • ListenPort - the port on which WireGuard will accept incoming connections.

  • PrivateKey - a private key generated by the wg genkey command. (To see the contents of the file run: sudo cat /etc/wireguard/privatekey)

  • SaveConfig - when set to true, the current state of the interface is saved to the configuration file when shutdown.

  • PostUp - command or script which is executed before bringing the interface up. In this example, we’re using iptables to enable masquerading. This will allow traffic to leave the server, giving the VPN clients access to the Internet.

    Make sure to replace ens3 after -A POSTROUTING to match the name of your public network interface. You can easily find the interface by running the following command:

    ip -o -4 route show to default | awk '{print $5}'
  • PostDown - command or script which is executed before bringing the interface down. The iptables rules will be removed once the interface is down.

The wg0.conf and privatekey files should not be readable to normal users. Use chmod to set the permissions to 600:

sudo chmod 600 /etc/wireguard/{privatekey,wg0.conf}

Once done, bring the wg0 interface up using the attributes specified in the configuration file:

sudo wg-quick up wg0

The command will produce an output similar to the following:

[#] ip link add wg0 type wireguard
[#] wg setconf wg0 /dev/fd/63
[#] ip -4 address add 10.0.0.1/24 dev wg0
[#] ip link set mtu 1420 up dev wg0
[#] iptables -A FORWARD -i wg0 -j ACCEPT; iptables -t nat -A POSTROUTING -o ens3 -j MASQUERADE

Run wg show wg0 to check the interface state and configuration:

sudo wg show wg0
interface: wg0
  public key: r3imyh3MCYggaZACmkx+CxlD6uAmICI8pe/PGq8+qCg=
  private key: (hidden)
  listening port: 51820

You can also run ip a show wg0 to verify the interface state:

ip a show wg0
4: wg0: <POINTOPOINT,NOARP,UP,LOWER_UP> mtu 1420 qdisc noqueue state UNKNOWN group default qlen 1000
    link/none
    inet 10.0.0.1/24 scope global wg0
       valid_lft forever preferred_lft forever

To bring the WireGuard interface at boot time run the following command:

sudo systemctl enable wg-quick@wg0

Server Networking and Firewall Configuration

For NAT to work, we need to enable IP forwarding. Open the /etc/sysctl.conf file and add or uncomment the following line:

sudo nano /etc/sysctl.conf
/etc/sysctl.conf
net.ipv4.ip_forward=1

Save the file and apply the change:

sudo sysctl -p
net.ipv4.ip_forward = 1

If you are using UFW to manage your firewall you need to open UDP traffic on port 51820:

sudo ufw allow 51820/udp

That’s it. The Ubuntu peer that will act as a server has been set up.

Linux and macOS Clients Setup

The installation instructions for all supported platforms are available at https://wireguard.com/install/ . On Linux systems, you can install the package using the distribution package manager and on macOS with brew. Once you install WireGuard follow the steps below to configure the client device.

The process for setting up a Linux and macOS client is pretty much the same as you did for the server. Start by generating the public and private keys:

wg genkey | sudo tee /etc/wireguard/privatekey | wg pubkey | sudo tee /etc/wireguard/publickey

Create the file wg0.conf and add the following contents:

sudo nano /etc/wireguard/wg0.conf
/etc/wireguard/wg0.conf
[Interface]
PrivateKey = CLIENT_PRIVATE_KEY
Address = 10.0.0.2/24


[Peer]
PublicKey = SERVER_PUBLIC_KEY
Endpoint = SERVER_IP_ADDRESS:51820
AllowedIPs = 0.0.0.0/0

The settings in the interface section have the same meaning as when setting up the server:

  • Address - a comma-separated list of v4 or v6 IP addresses for the wg0 interface.
  • PrivateKey - To see the contents of the file on the client machine run: sudo cat /etc/wireguard/privatekey

The peer section contains the following fields:

  • PublicKey - a public key of the peer you want to connect to. (The contents of the server’s /etc/wireguard/publickey file).
  • Endpoint - an IP or hostname of the peer you want to connect to followed by a colon, and then a port number on which the remote peer listen to.
  • AllowedIPs - a comma-separated list of v4 or v6 IP addresses from which incoming traffic for the peer is allowed and to which outgoing traffic for this peer is directed. We’re using 0.0.0.0/0 because we are routing the traffic and want the server peer to send packets with any source IP.

If you need to configure additional clients, just repeat the same steps using a different private IP address.

Windows Clients Setup

Download and install the Windows msi package from the WireGuard website .

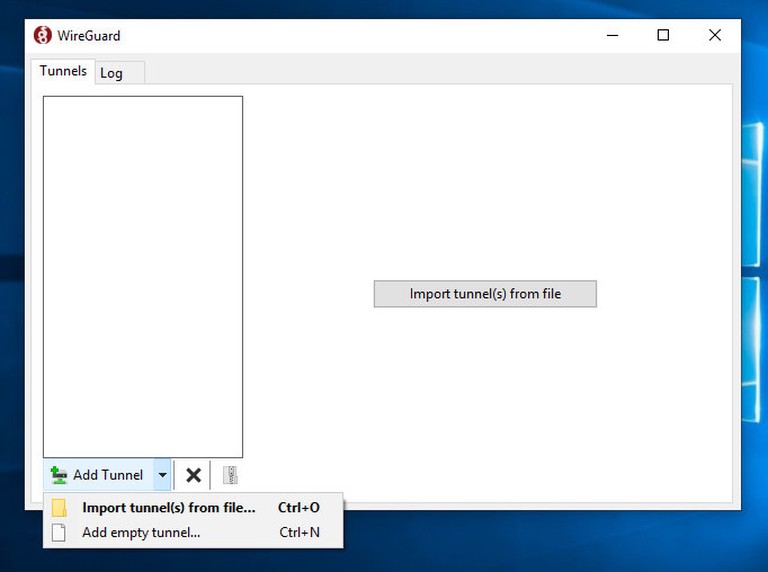

Once installed open the WireGuard application and click on “Add Tunnel” -> “Add empty tunnel…” as shown on the image below:

A publickey pair is automatically created and displayed it on the screen.

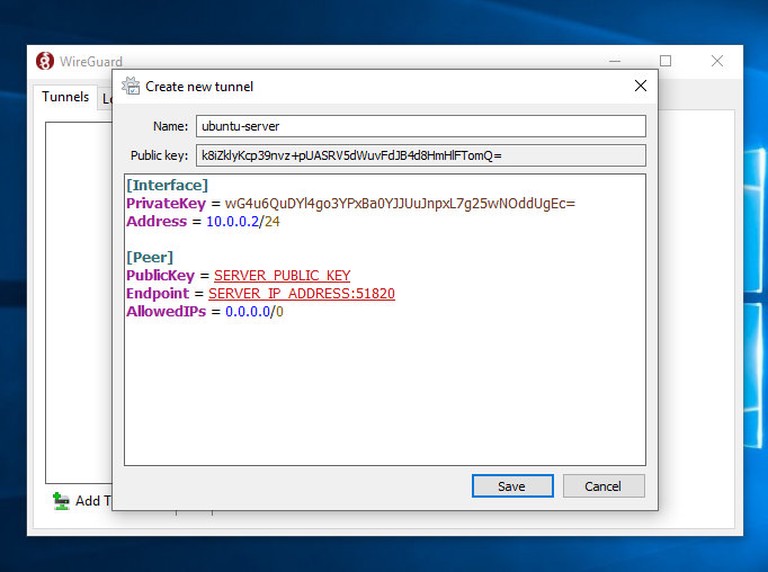

Enter a name for the tunnel and edit the configuration as follows:

[Interface]
PrivateKey = CLIENT_PRIVATE_KEY
Address = 10.0.0.2/24


[Peer]
PublicKey = SERVER_PUBLIC_KEY
Endpoint = SERVER_IP_ADDRESS:51820
AllowedIPs = 0.0.0.0/0

In the interface section add a new line to define the client tunnel Address.

In the peer section add the following fields:

  • PublicKey - the public key of the Ubuntu server (/etc/wireguard/publickey file).
  • Endpoint - the IP address of the Ubuntu server followed by a colon, and WireGuard port (51820).
  • AllowedIPs - 0.0.0.0/0

Once done click on the “Save” button.

Add the Client Peer to the Server

The last step is to add the client public key and IP address to the server:

sudo wg set wg0 peer CLIENT_PUBLIC_KEY allowed-ips 10.0.0.2

Make sure to change the CLIENT_PUBLIC_KEY with the public key you generated on the client machine (sudo cat /etc/wireguard/publickey) and adjust the client IP address if it is different. Windows users can copy the public key from the WireGuard application.

Once done, go back to the client machine and bring up the tunneling interface.

Linux and macOS Clients

On Linux clients run the following command the bring up the interface:

sudo wg-quick up wg0

Now you should be connected to the Ubuntu server, and the traffic from your client machine should be routed through it. You can check the connection with:

sudo wg
interface: wg0
  public key: sZThYo/0oECwzUsIKTa6LYXLhk+Jb/nqK4kCCP2pyFg=
  private key: (hidden)
  listening port: 48052
  fwmark: 0xca6c

peer: r3imyh3MCYggaZACmkx+CxlD6uAmICI8pe/PGq8+qCg=
  endpoint: XXX.XXX.XXX.XXX:51820
  allowed ips: 0.0.0.0/0
  latest handshake: 1 minute, 22 seconds ago
  transfer: 58.43 KiB received, 70.82 KiB sent

You can also open your browser, type “what is my ip”, and you should see your Ubuntu server IP address.

To stop the tunneling bring down the wg0 interface:

sudo wg-quick down wg0

Windows Clients

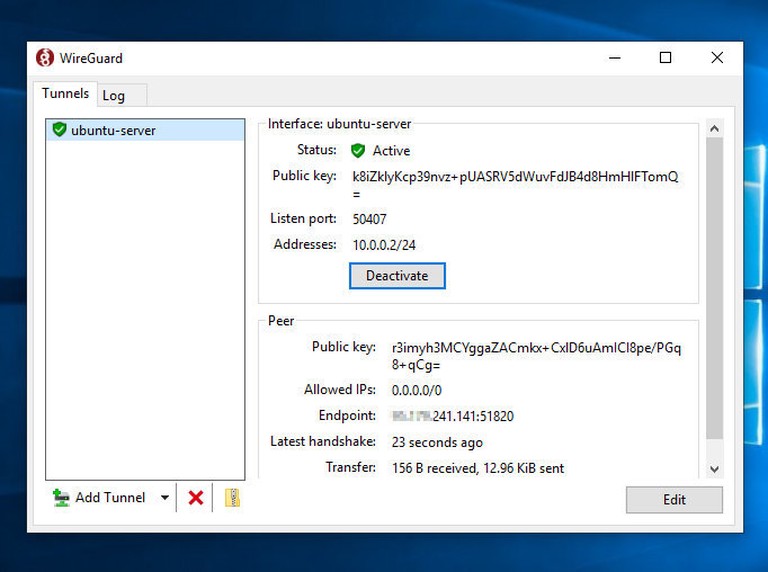

If you installed WireGuard on Windows, click on the “Activate” button. Once the peers are connected, the tunnel status will change to Active:

Conclusion

We have shown you how to install WireGuard on an Ubuntu 18.04 machine and configure it as a VPN server. This setup allows you to surf the web anonymously by keeping your traffic data private.

If you are facing any problem, feel free to leave a comment.
