How to Install Tomcat 8.5 on Ubuntu 18.04

Updated on

5 min read

Install Tomcat 8.5 on Ubuntu 18.04

Apache Tomcat is an open-source implementation of Java Servlet, JavaServer Pages, Java Expression Language, and Java WebSocket technologies. It is one of the most widely adopted applications and web servers in the world today. Tomcat is simple to use and has a robust ecosystem of add-ons.

This tutorial demonstrates how to install Tomcat 8.5 on Ubuntu 18.04. The same instructions apply for Ubuntu 16.04 and any Ubuntu based distribution, including Linux Mint and Elementary OS.

Prerequisites

Before continuing with this tutorial, make sure you are logged in as a user with sudo privileges .

Install OpenJDK

OpenJDK, the open-source implementation of the Java Platform is the default Java development and runtime in Ubuntu 18.04.

The installation of the OpenJDK package is pretty straight forward:

sudo apt install default-jdk

Create Tomcat user

We will create a new system user and group with home directory /opt/tomcat which will run the Tomcat service:

sudo useradd -m -U -d /opt/tomcat -s /bin/false tomcat

Download Tomcat

We will use wget and unzip to download and extract the Tomcat archive. If you don’t have unzip and wget installed on your system install the packages with:

sudo apt install unzip wget

Download the latest version of Tomcat 8.5.x from the Tomcat downloads page . At the time of writing, the latest version is 8.5.37. Before continuing with the next step you should check the download page for a new version.

Change to the /tmp directory and download the zip file with the following wget command :

cd /tmpwget http://www-us.apache.org/dist/tomcat/tomcat-8/v8.5.37/bin/apache-tomcat-8.5.37.zip

Once the download is completed, unzip the file and move it to the /opt/tomcat directory:

unzip apache-tomcat-*.zipsudo mkdir -p /opt/tomcatsudo mv apache-tomcat-8.5.37 /opt/tomcat/

In order to have more control over versions and updates, we will create a symbolic link latest which will point to the Tomcat installation directory:

sudo ln -s /opt/tomcat/apache-tomcat-8.5.37 /opt/tomcat/latest

Later if you want to upgrade your Tomcat installation you can simply unpack the newer version and change the symlink to point to the latest version.

The tomcat user that we previously set up needs to have access to the tomcat directory, so we will change the directory ownership to user and group tomcat:

sudo chown -R tomcat: /opt/tomcat

Make the scripts inside bin directory executable by running the following chmod command:

sudo sh -c 'chmod +x /opt/tomcat/latest/bin/*.sh'

Create a systemd unit file

To run Tomcat as a service we will create a new tomcat.service unit file in the /etc/systemd/system/ directory with the following contents:

/etc/systemd/system/tomcat.service
[Unit]
Description=Tomcat 8.5 servlet container
After=network.target

[Service]
Type=forking

User=tomcat
Group=tomcat

Environment="JAVA_HOME=/usr/lib/jvm/default-java"
Environment="JAVA_OPTS=-Djava.security.egd=file:///dev/urandom"

Environment="CATALINA_BASE=/opt/tomcat/latest"
Environment="CATALINA_HOME=/opt/tomcat/latest"
Environment="CATALINA_PID=/opt/tomcat/latest/temp/tomcat.pid"
Environment="CATALINA_OPTS=-Xms512M -Xmx1024M -server -XX:+UseParallelGC"

ExecStart=/opt/tomcat/latest/bin/startup.sh
ExecStop=/opt/tomcat/latest/bin/shutdown.sh

[Install]
WantedBy=multi-user.target

Notify systemd that we created a new unit file and start the Tomcat service by executing:

sudo systemctl daemon-reloadsudo systemctl start tomcat

You can check the service status with the following command:

sudo systemctl status tomcat
● tomcat.service - Tomcat 8.5 servlet container
   Loaded: loaded (/etc/systemd/system/tomcat.service; disabled; vendor preset: enabled)
   Active: active (running) since Sat 2018-05-05 11:04:40 UTC; 5s ago
  Process: 13478 ExecStart=/opt/tomcat/latest/bin/startup.sh (code=exited, status=0/SUCCESS)
 Main PID: 13499 (java)
    Tasks: 45 (limit: 507)
   CGroup: /system.slice/tomcat.service
           └─13499 /usr/lib/jvm/default-java/bin/java -Djava.util.logging.config.file=/opt/tomcat/latest/conf/logging.properties -Djava.util.logging.manager=org.apache.juli.ClassLoaderLogManager -Djava.security.

and if there are no errors you can enable the Tomcat service to be automatically started at boot time:

sudo systemctl enable tomcat

Adjust the Firewall

If your server is protected by a firewall and you want to access the tomcat interface from the outside of your local network you will need to open port 8080.

To allow traffic on port 8080 type the following command:

sudo ufw allow 8080/tcp
When running a Tomcat application in a production environment most likely you will have a load balancer or reverse proxy and it’s a best practice to restrict access to port 8080 only to your internal network.

Configure Tomcat Web Management Interface

Now that we have Tomcat installed on our Ubuntu server the next step is to create a user who will have access the web management interface.

Tomcat users and their roles are defined in the tomcat-users.xml file.

If you open the file you will notice that it is filled with comments and examples describing how to configure the file.

sudo vim /opt/tomcat/latest/conf/tomcat-users.xml

To add a new user who can access the tomcat web interface (manager-gui and admin-gui) we need to define the user in the tomcat-users.xml file as shown below. Be sure you change the username and password to something more secure:

/opt/tomcat/latest/conf/tomcat-users.xml
<tomcat-users>
<!--
    Comments
-->
   <role rolename="admin-gui"/>
   <role rolename="manager-gui"/>
   <user username="admin" password="admin_password" roles="admin-gui,manager-gui"/>
</tomcat-users>

By default Tomcat web management interface is configured to allow access only from the localhost, if you want to be able to access the web interface from a remote IP or from anywhere which is not recommended because it is a security risk you can open the following files and make the following changes.

If you need to access the web interface from anywhere open the following files and comment or remove the lines highlighted in yellow:

/opt/tomcat/latest/webapps/manager/META-INF/context.xml
<Context antiResourceLocking="false" privileged="true" >
<!--
  <Valve className="org.apache.catalina.valves.RemoteAddrValve"
         allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1" />
-->
</Context>
/opt/tomcat/latest/webapps/host-manager/META-INF/context.xml
<Context antiResourceLocking="false" privileged="true" >
<!--
  <Valve className="org.apache.catalina.valves.RemoteAddrValve"
         allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1" />
-->
</Context>

If you need to access the web interface only from a specific IP, instead of commenting the blocks add your public IP to the list. Let’s say your public IP is 32.32.32.32 and you want to allow access only from that IP:

/opt/tomcat/latest/webapps/manager/META-INF/context.xml
<Context antiResourceLocking="false" privileged="true" >
  <Valve className="org.apache.catalina.valves.RemoteAddrValve"
         allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1|32.32.32.32" />
</Context>
/opt/tomcat/latest/webapps/host-manager/META-INF/context.xml
<Context antiResourceLocking="false" privileged="true" >
  <Valve className="org.apache.catalina.valves.RemoteAddrValve"
         allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1|32.32.32.32" />
</Context>

The list of allowed IP addresses is a list separated with vertical bar |. You can add single IP addresses or use a regular expressions.

Restart the Tomcat service for changes to take effect:

sudo systemctl restart tomcat

Test the Installation

Open your browser and type: http://<your_domain_or_IP_address>:8080

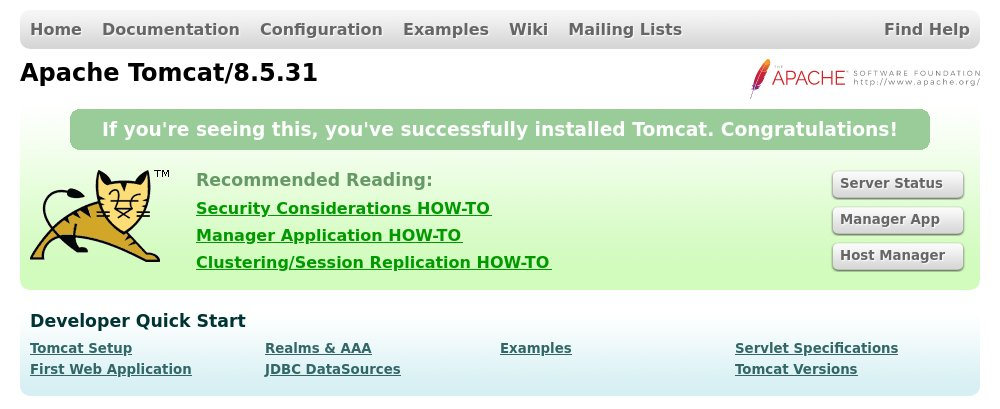

Assuming the installation is successful, a screen similar to the following will appear:

Tomcat 8.5

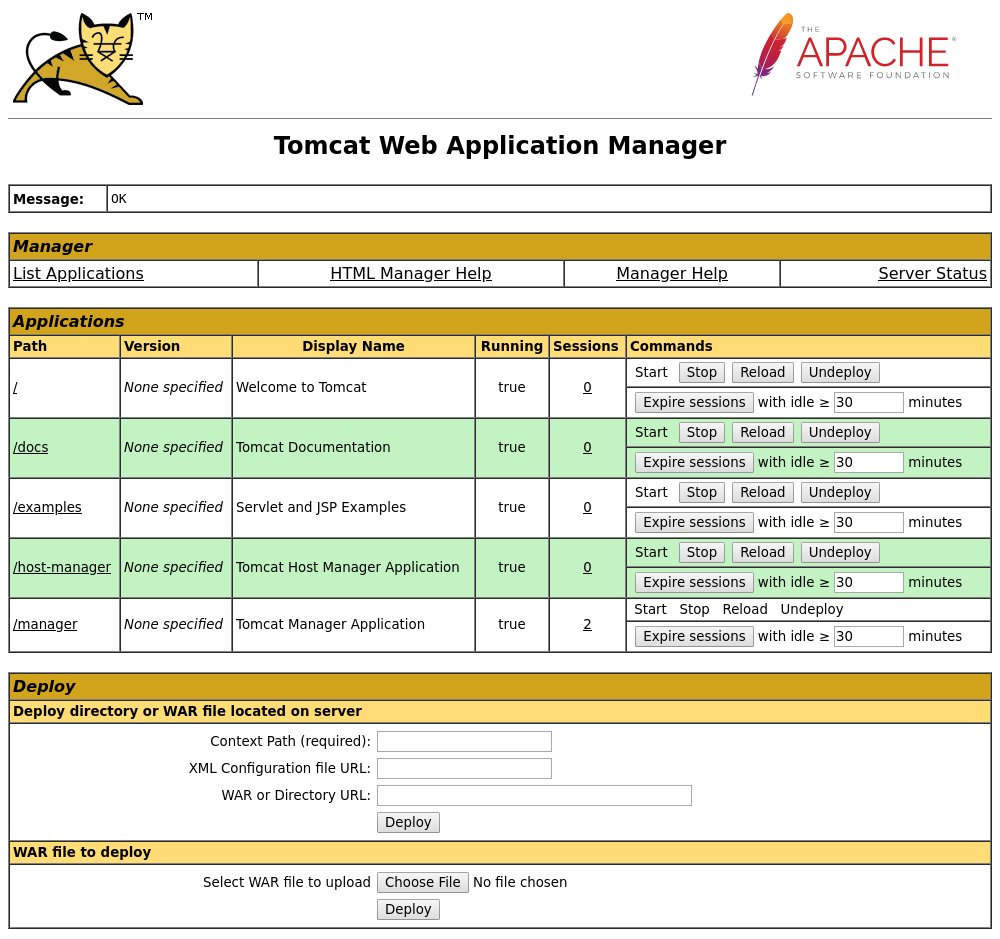

Tomcat web application manager dashboard is available at http://<your_domain_or_IP_address>:8080/manager/html. From here, you can deploy, undeploy, start, stop and reload your applications.

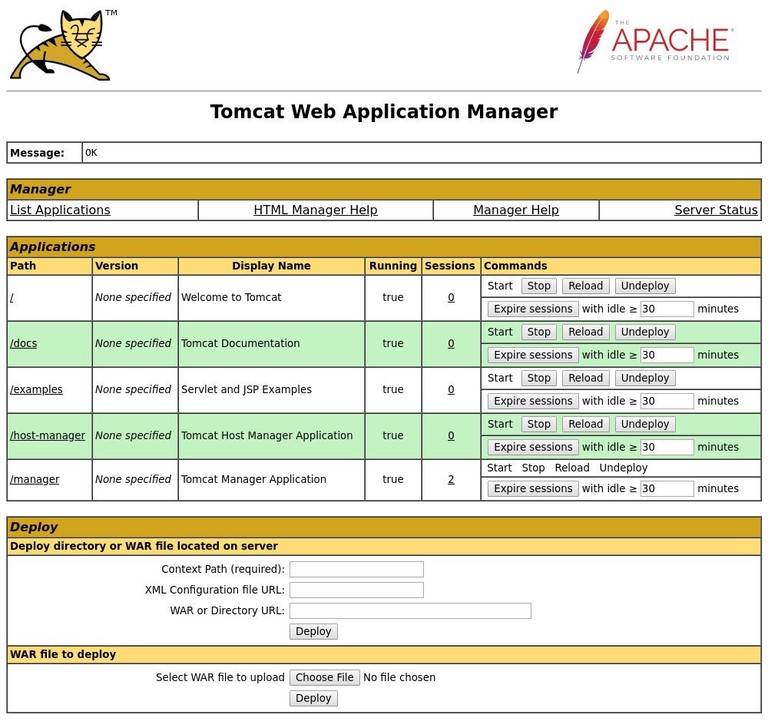

Tomcat web application manager

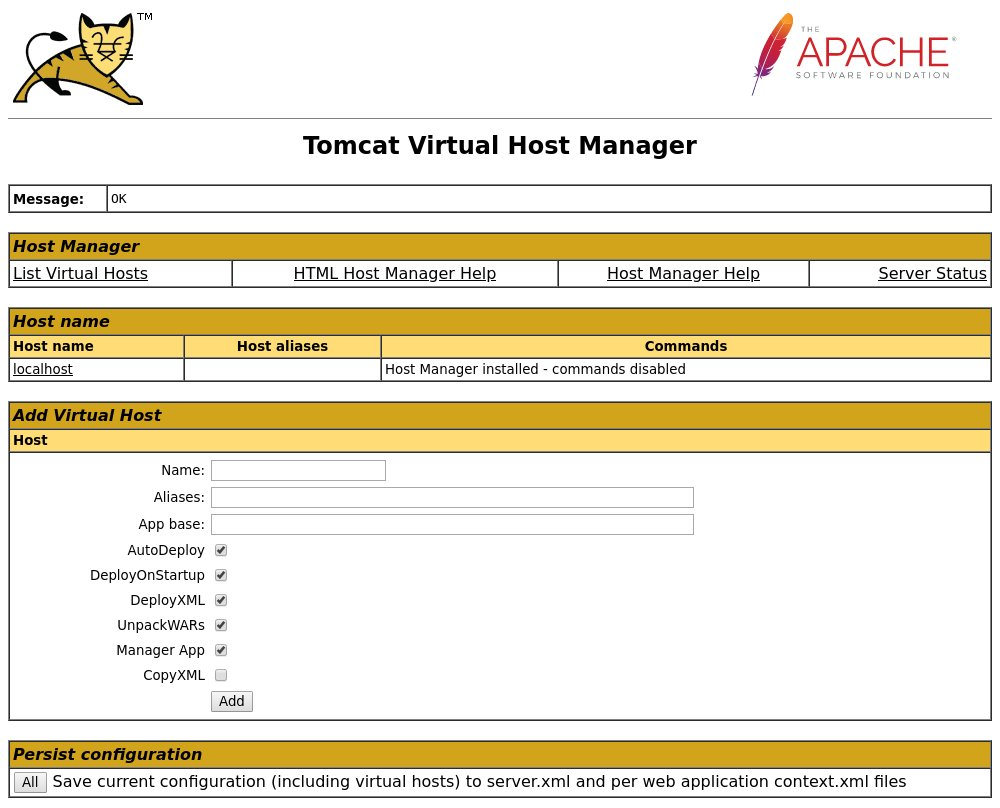

Tomcat virtual host manager dashboard is available at http://<your_domain_or_IP_address>:8080/host-manager/html. From here, you can create, delete and manage Tomcat virtual hosts.

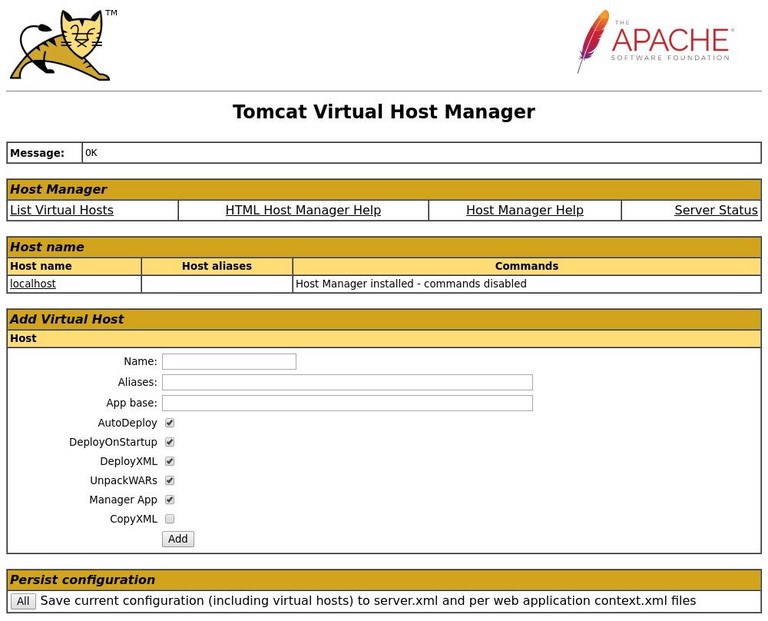

Tomcat virtual host manager

Conclusion

You have successfully installed Tomcat 8.5 on your Ubuntu 18.04 system. You can now visit the official Apache Tomcat 8 Documentation and learn more about the Apache Tomcat features.

If you hit a problem or have feedback, leave a comment below.
