How to install Tomcat 8.5 on Debian 9

Apache Tomcat is an open source application server which supports Java Servlet, JavaServer Pages, Java Expression Language and Java WebSocket technologies. It is one of the most widely used application and web server in the world today.

This tutorial will show you how to install Apache Tomcat 8.5 on Debian 9 and configure the Tomcat web management interface.

Prerequisites

Before continuing with this tutorial, make sure you are logged in as a user with sudo privileges.

We will download the Tomcat zip file using the wget utility and extract the downloaded archive with unzip.

If you don’t have these utilities installed on your system you can do it by typing:

sudo apt install unzip wget

Install OpenJDK

Tomcat 8.5 requires Java SE 7 or later. To install the default OpenJDK package from the Debian 9 repositories run the following command:

sudo apt install default-jdk

If you prefer Oracle Java over OpenJDK you can install it by following these instructions.

Create Tomcat user

Running Tomcat as a root user is a security risk and is not recommended.

To create a new system user and group for our Tomcat instance with home directory of /opt/tomcat run the following command:

sudo useradd -m -U -d /opt/tomcat -s /bin/false tomcat

Download Tomcat

We will download the latest version of Tomcat 8.5.x from the Tomcat downloads page. At the time of writing, the latest version is 8.5.34. Before downloading the zip file you should check the download page for a new version.

Change to the /tmp directory and download the zip file with wget:

cd /tmp
wget http://www-us.apache.org/dist/tomcat/tomcat-8/v8.5.34/bin/apache-tomcat-8.5.34.zip

When the download is completed, run the following commands to extract the zip file and move it to the /opt/tomcat directory:

unzip apache-tomcat-*.zip
sudo mkdir -p /opt/tomcat
sudo mv apache-tomcat-8.5.34 /opt/tomcat/

To have more control over Tomcat versions and updates, we will create a symbolic link named latest which will point to the Tomcat installation directory:

sudo ln -s /opt/tomcat/apache-tomcat-8.5.34 /opt/tomcat/latest

Later when you will be upgrading the Tomcat version you can simply unpack the newer version and change the symlink to point to the latest version.

Change the ownership of the /opt/tomcat directory to user and group tomcat so the user can have access to the tomcat installation:

sudo chown -R tomcat: /opt/tomcat

also make the scripts inside bin directory executable:

sudo chmod +x /opt/tomcat/latest/bin/*.sh

Create a systemd unit file

Create a new tomcat.service unit file in the /etc/systemd/system/ directory with the following contents:

/etc/systemd/system/tomcat.service
[Unit]
Description=Tomcat 8.5 servlet container
After=network.target

[Service]
Type=forking

User=tomcat
Group=tomcat

Environment="JAVA_HOME=/usr/lib/jvm/default-java"
Environment="JAVA_OPTS=-Djava.security.egd=file:///dev/urandom"

Environment="CATALINA_BASE=/opt/tomcat/latest"
Environment="CATALINA_HOME=/opt/tomcat/latest"
Environment="CATALINA_PID=/opt/tomcat/latest/temp/tomcat.pid"
Environment="CATALINA_OPTS=-Xms512M -Xmx1024M -server -XX:+UseParallelGC"

ExecStart=/opt/tomcat/latest/bin/startup.sh
ExecStop=/opt/tomcat/latest/bin/shutdown.sh

[Install]
WantedBy=multi-user.target

Notify systemd that we created a new unit file and start the Tomcat service by executing:

sudo systemctl daemon-reload
sudo systemctl start tomcat

Check the Tomcat service status by typing:

sudo systemctl status tomcat
● tomcat.service
   Loaded: loaded (/etc/systemd/system/tomcat.service; disabled; vendor preset: enabled)
   Active: active (running) since Wed 2018-06-06 10:51:36 UTC; 3s ago
  Process: 21187 ExecStart=/opt/tomcat/latest/bin/startup.sh (code=exited, status=0/SUCCESS)
 Main PID: 21195 (java)
    Tasks: 44 (limit: 4915)
   CGroup: /system.slice/tomcat.service

If there are no errors you can enable the Tomcat service to be automatically started at boot time:

sudo systemctl enable tomcat

You can start stop and restart Tomcat same as any other systemd unit service:

sudo systemctl start tomcat
sudo systemctl stop tomcat
sudo systemctl restart tomcat

Adjust the Firewall

If your firewall running on your Debian system and you want to access the tomcat interface from the outside of your local network you’ll need to open the port 8080:

sudo ufw allow 8080/tcp

When running a Tomcat application in a production environment most likely you will have a load balancer or reverse proxy and it’s a best practice to restrict access to port 8080 only to your internal network.

Configure Tomcat Web Management Interface

Now that Tomcat is installed on your Debian server the next step is to create a user with access to the web management interface.

Tomcat users and their roles are defined in the tomcat-users.xml file.

If you open the file you will notice that it is filled with comments and examples describing how to configure the file.

sudo vim /opt/tomcat/latest/conf/tomcat-users.xml

We will define our new user with access the tomcat web interface (manager-gui and admin-gui) in the tomcat-users.xml file as shown bellow. Be sure you change the username and password to something more secure:

/opt/tomcat/latest/conf/tomcat-users.xml
<tomcat-users>
<!--
    Comments
-->
   <role rolename="admin-gui"/>
   <role rolename="manager-gui"/>
   <user username="admin" password="admin_password" roles="admin-gui,manager-gui"/>
</tomcat-users>

By default the Tomcat web management interface allows access only from the localhost. If you want to access the web interface from a remote IP or from anywhere which is not recommended because it is a security risk you can open the following files and make the following changes.

If you need to access the web interface from anywhere open the following files and comment or remove the lines highlighted in yellow:

/opt/tomcat/latest/webapps/manager/META-INF/context.xml
<Context antiResourceLocking="false" privileged="true" >
<!--
  <Valve className="org.apache.catalina.valves.RemoteAddrValve"
         allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1" />
-->
</Context>
/opt/tomcat/latest/webapps/host-manager/META-INF/context.xml
<Context antiResourceLocking="false" privileged="true" >
<!--
  <Valve className="org.apache.catalina.valves.RemoteAddrValve"
         allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1" />
-->
</Context>

If you need to access the web interface only from a specific IP, instead of commenting the blocks add your public IP to the list. Let’s say your public IP is 32.32.32.32 and you want to allow access only from that IP:

/opt/tomcat/latest/webapps/manager/META-INF/context.xml
<Context antiResourceLocking="false" privileged="true" >
  <Valve className="org.apache.catalina.valves.RemoteAddrValve"
         allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1|32.32.32.32" />
</Context>
/opt/tomcat/latest/webapps/host-manager/META-INF/context.xml
<Context antiResourceLocking="false" privileged="true" >
  <Valve className="org.apache.catalina.valves.RemoteAddrValve"
         allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1|32.32.32.32" />
</Context>

The list of allowed IP addresses is a list separated with vertical bar |. You can add single IP addresses or use a regular expressions.

Restart the Tomcat service for changes to take effect:

sudo systemctl restart tomcat

Test the Installation

Open your browser and type: http://<your_domain_or_IP_address>:8080

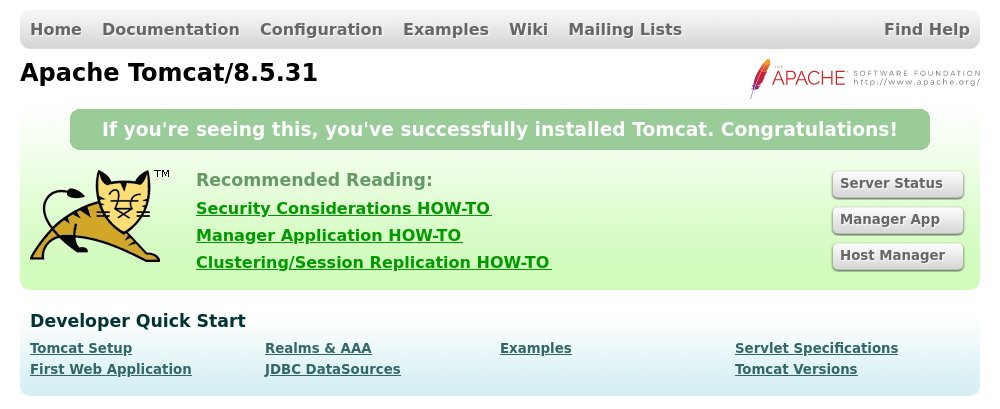

If the installation is successful, a screen similar to the following will appear:

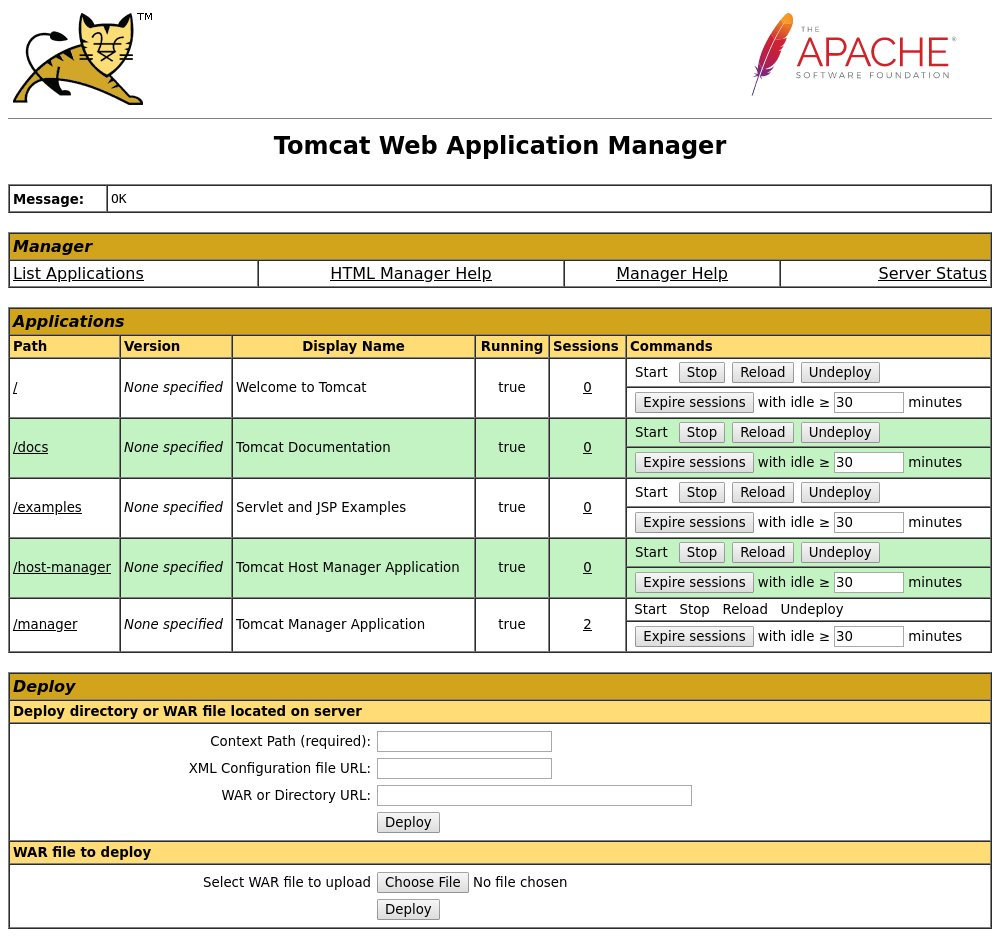

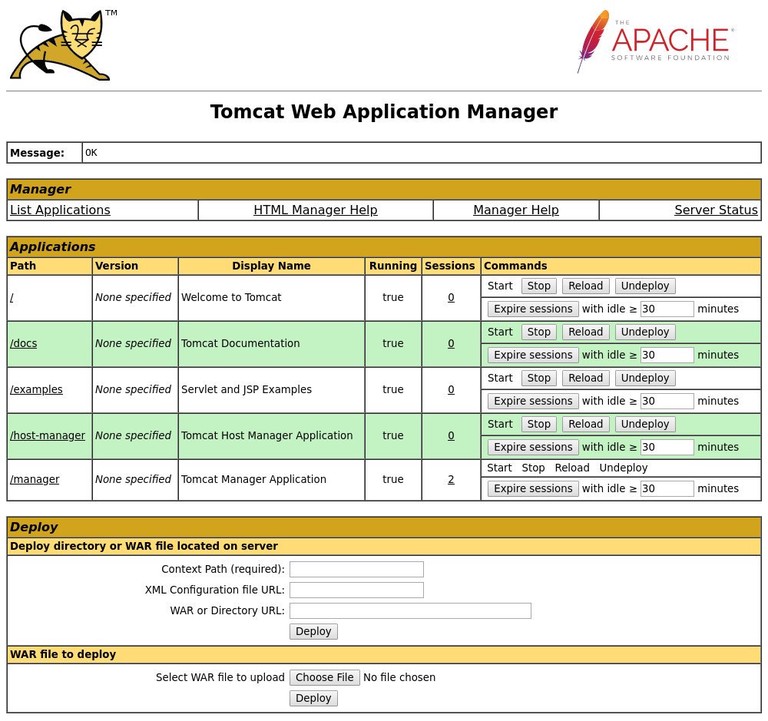

Tomcat web application manager dashboard is available at http://<your_domain_or_IP_address>:8080/manager/html. From here you can deploy, undeploy, start, stop and reload your applications.

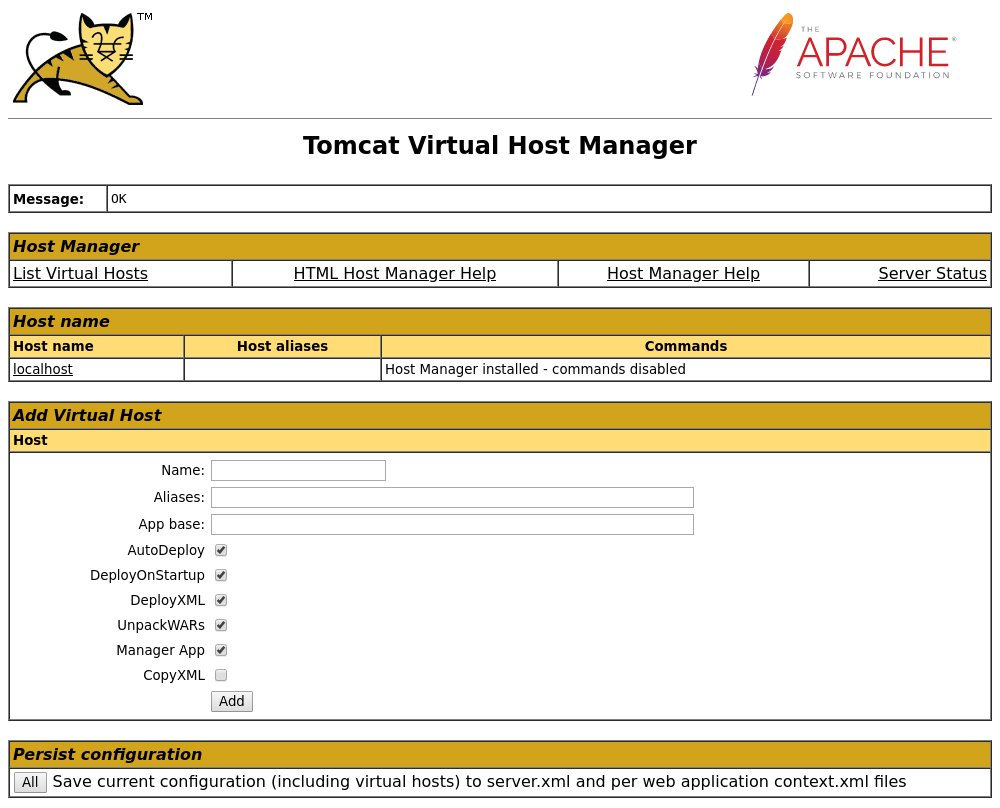

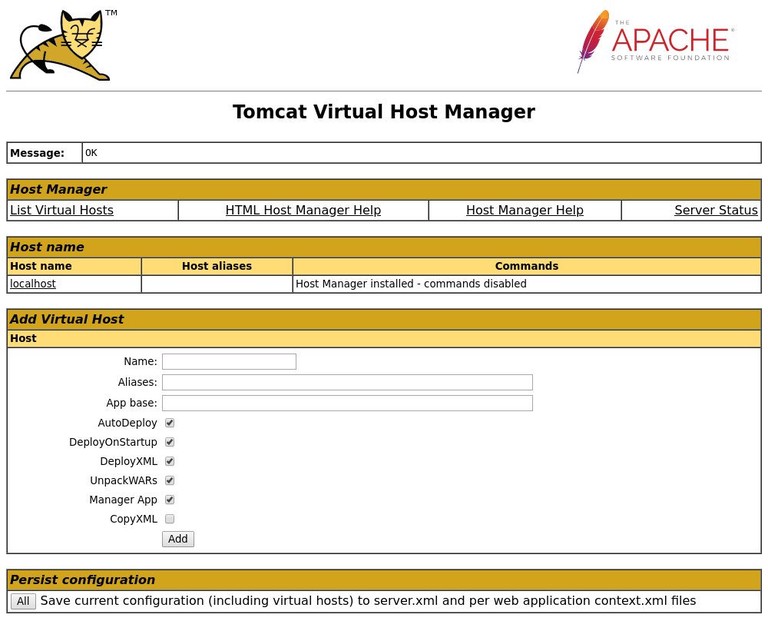

Tomcat virtual host manager dashboard is available at http://<your_domain_or_IP_address>:8080/host-manager/html. From here you can create, delete and manage Tomcat virtual hosts.

Conclusion

You have successfully installed Tomcat 8.5 on your Debian 9 system. You can now visit the official Apache Tomcat 8 Documentation and learn more about the Apache Tomcat features.

If you hit a problem or have a feedback, leave a comment below.
